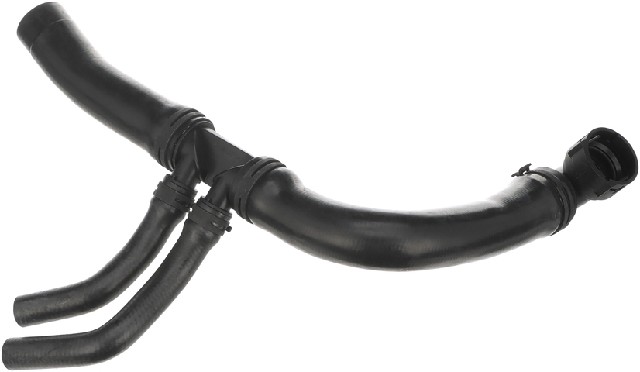

Gates 51354 lower radiator coolant hose for the 2015-2017 Ford F-150 V6 3.5L and other vehicles carries engine coolant between the radiator and the engine. This Gates coolant hose is a molded, modular design.
- Branch and female quick connector built into the modular assembly
- Materials resist collapse under vacuum
- Resists electrochemical degradation, the leading cause of hose failure
- EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID and SAE 20R4 EC Class D1 at 25 mm (1 in.) ID and over
- Temperature range: -40°F to +257°F (-40°C to +125°C)
Quick facts
- Part: Gates 51354 radiator coolant hose
- Fits: 2015-2017 Ford F-150 V6 3.5L and other vehicles
- Position: Lower
- Material: EPDM, plastic, steel
- Condition: New
A leaking, cracked, swollen or collapsed hose can show up as coolant stains, low coolant or an engine that runs hot. Before replacing it, look along the hose and at the quick connector with the engine off and cool for cracks, bulges and wet spots, because a leak elsewhere in the cooling system can look the same.
Fits
This hose fits the 2015-2017 Ford F-150 V6 3.5L and the 2015-2016 Ford Lobo V6 3.5L.
Specifications
Fit and size
- Position: lower
- Quantity per vehicle: 1
- Centerline length: 29 in (737 mm)
- End 1 inside diameter: 1.4 in (36 mm)
- End 2 inside diameter: 1.5 in (38 mm)
- End 3 inside diameter: 0.685 in
- End 4 inside diameter: 0.685 in (17 mm)
Build and materials
- Construction: molded, modular
- Material: EPDM, plastic, steel
- Modular components: branch, female quick connector
- Condition: new
- Country of origin: Turkey
In the box
One radiator coolant hose with its branch and female quick connector. This listing holds one hose, and one is all the application calls for.
Installation notes
- Replace the clamps whenever a new coolant hose is installed.
- Not for fuel or oil transfer applications.
Interchange: FL3Z 8286 D
27341X · 67311 · 72896 · E72896 · F10358 · KM5309 · R16386
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
27341X, 67311, 72896, E72896, F10358, FL3Z 8286 D, FL3Z8286D, KM5309, 51354, R16386
Frequently Asked Questions
Is the Gates lower radiator hose 51354 right for the 2015-2017 Ford F-150 V6 3.5L?
Yes. The Gates 51354 lower radiator coolant hose fits the 2015-2017 Ford F-150 V6 3.5L and the 2015-2016 Ford Lobo V6 3.5L, and each takes one.
What material is this lower radiator coolant hose made of?
Gates 51354 is listed as EPDM, plastic and steel. The tube and the cover are EPDM, with a synthetic fiber knit reinforcement.
Does the Gates radiator coolant hose come with a quick connector?
Yes. This listing is one hose with a branch and a female quick connector built in, and the application calls for one hose.
How hot can the Gates molded coolant hose 51354 get?
It is rated for -40°F to +257°F (-40°C to +125°C). It meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID and SAE 20R4 EC Class D1 at 25 mm (1 in.) ID and over.
Do I need new clamps with a Gates 51354 hose?
Yes. Fresh clamps go on with every new coolant hose, so plan on them with Gates 51354, which is for coolant only and never for fuel or oil transfer.
