Serpentine Belt for 2014-2016 Cadillac ELR & More - Gates K030334SF

$26.99

Vehicles this part fits

    Part number: K030334SF
    UPC: 770075705390
    Condition: New
    Weight: 0.15 LBS
    Item Package Quantity: 1
    $26.99
    Adding to cart… The item has been added

    Have questions?

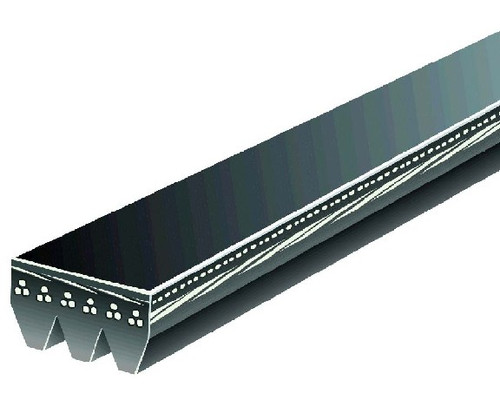

    Gates Serpentine Belt P/N:K030334SF
    Gates Serpentine Belt P/N:K030334SF
    $26.99
    $26.99

    Gates K030334SF serpentine belt for the 2014-2016 Cadillac ELR 4-cylinder 1.4L and other vehicles drives the water pump and other belt-driven accessories. As one of the Gates ribbed belts, it is a Micro-V Stretch Fit design with self-tensioning technology.

    • Micro-V Stretch Fit belt with exclusive self-tensioning technology for stretch fit drive systems
    • Specially formulated adhesive locks onto the cord, so the cord can elongate and stretch without losing tension
    • Gates-engineered nylon tensile cord combines strength and flexibility
    • Patented EPDM belt ribs are extremely resistant to contamination, wear and pilling
    • Single-use Stretch Fit design: the belt must be replaced if it is removed

    Quick facts

    • Part: Gates K030334SF serpentine belt
    • Fits: 2014-2016 Cadillac ELR 4-cylinder 1.4L and other vehicles
    • Position: Water pump
    • Material: EPDM
    • Condition: New

    A cracked or frayed belt, missing pieces of rib, or squealing at the front of the engine can mean the belt is worn. These signs alone do not prove the belt is the problem, since a seized pulley bearing can squeal too.

    Fits

    It fits the 2014-2016 Cadillac ELR 4-cylinder 1.4L, which takes one belt, and the 2011-2015 Chevrolet Volt 4-cylinder 1.4L, which also takes one. Both are listed with engine code L4-1.4L.

    Specifications

    Fit and size

    • Position: water pump
    • Quantity per vehicle: 1
    • Effective length: 850 mm (33.45 in)
    • Outside circumference: 864 mm (34 in)
    • Top width: 11 mm (0.42 in)
    • Rib quantity: 3
    • Cross section designation: K

    Build and materials

    • Type: V-ribbed belt (Stretch Fit)
    • Material: EPDM
    • Cord material: nylon
    • Condition: New
    • Country of origin: Mexico

    In the box

    One serpentine belt and one instruction sheet (Sheet B).

    Installation notes

    • A special installation tool is required.
    • Follow instruction sheet B for the steps.

    Interchange: 25-030334SF
    4030343S · 3PK870EE · E030333 · 55569329 · S030334 · 1340022

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4030343S, 3PK870EE, E030333, 55569329, S030334, 25-030334SF, K030334SF, 1340022

    Frequently Asked Questions

    Does the Gates K030334SF fit the 2011-2015 Chevrolet Volt 4-cylinder 1.4L?

    Yes. Gates K030334SF fits the 2011-2015 Chevrolet Volt 4-cylinder 1.4L and the 2014-2016 Cadillac ELR 4-cylinder 1.4L, and each takes one belt.

    What are the size and rib count of this Gates micro v serpentine belt?

    Gates K030334SF has 3 ribs and a K cross section. It measures 850 mm effective length, 864 mm outside circumference and 11 mm top width, in EPDM.

    Do Gates serpentine belts like this Stretch Fit one need a special tool?

    Yes. This belt calls for a special installation tool, and instruction sheet B comes with it for the steps.

    Can Gates drive belts of this Stretch Fit type be reused after removal?

    No. This Stretch Fit belt is single-use only and must be replaced if it is removed.

    Is number 55569329 covered by the Gates K030334SF?

    Yes. 55569329 is one of the numbers this Gates K030334SF serpentine belt replaces.
