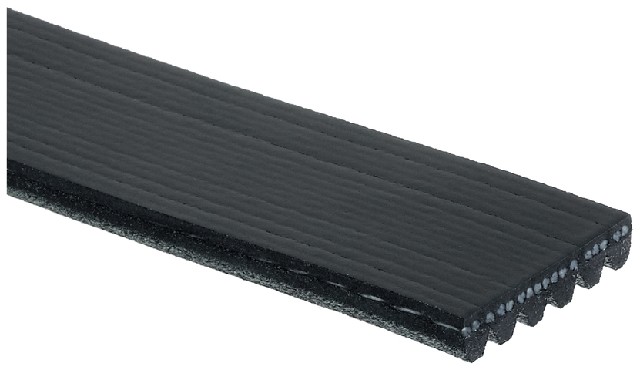

Serpentine Belt for 2011-2013 Ford Fiesta & More - Gates K060397SF

$70.99

Vehicles this part fits

    Part number: K060397SF
    UPC: 770075691181
    Condition: New
    Weight: 0.38 LBS
    Item Package Quantity: 1
    $70.99
    Adding to cart… The item has been added

    Have questions?

    Gates Serpentine Belt P/N:K060397SF
    Gates Serpentine Belt P/N:K060397SF
    $70.99
    $70.99

    Gates K060397SF serpentine belt for the 2011-2013 Ford Fiesta 4-cylinder 1.6L and other vehicles transfers engine power to the accessories through six ribs. It is one of the Gates ribbed belts built for stretch fit drive systems.

    • Micro-V Stretch Fit belt with self-tensioning technology
    • Specially formulated adhesive locks onto the cord so it can elongate and stretch without losing tension
    • Gates-engineered nylon tensile cord for strength and flexibility
    • Patented EPDM ribs resist contamination, wear and pilling

    Quick facts

    • Part: Gates K060397SF serpentine belt
    • Fits: the 2011-2013 Ford Fiesta 4-cylinder 1.6L and other vehicles
    • Material: EPDM
    • Condition: New

    Cracked or glazed ribs, a chirp or squeal, or fraying edges can mean the belt is worn. Before you replace it, rule out a seized accessory pulley or oil on the ribs, because a fault there can sound the same. The 2011-2013 Ford Fiesta 4-cylinder 1.6L takes one belt.

    Fits

    It fits the 2011-2013 Ford Fiesta 4-cylinder 1.6L and the 2011-2013 Ford Fiesta Ikon 4-cylinder 1.6L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Cross section: K
    • Rib quantity: 6
    • Top width: 20 mm (0.807 in)
    • Outside circumference: 1026 mm (40.375 in)
    • Effective length: 1010 mm (39.78 in)

    Build and materials

    • Type: V-ribbed belt (Stretch Fit)
    • Material: EPDM
    • Cord material: nylon
    • Condition: New
    • Country of origin: Mexico

    In the box

    One serpentine belt and an instruction sheet (Sheet M).

    Installation notes

    • A special installation tool is required.
    • Stretch Fit belts are single-use only and must be replaced if removed.
    • Instruction Sheet M comes with the belt for the steps.

    Interchange: 25-060397SF
    AE8Q 6C301 AA · AE8Q 6D314 AA · BE8Z 8620 A · 6K397SF · 4060402S · 4060408S · 6PK1022EE · E060393 · S060397 · JK6414A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    6K397SF, 4060402S, 4060408S, 6PK1022EE, E060393, AE8Q 6C301 AA, AE8Q 6D314 AA, BE8Z 8620 A, S060397, JK6414A, 25-060397SF

    Frequently Asked Questions

    Is this Gates K060397SF a Ford Fiesta serpentine belt for 2011-2013 cars with the 4-cylinder 1.6L?

    Yes. Gates K060397SF fits the 2011-2013 Ford Fiesta 4-cylinder 1.6L and the 2011-2013 Ford Fiesta Ikon 4-cylinder 1.6L.

    Can Gates serpentine belts like this Stretch Fit belt be reused after removal?

    No. A Stretch Fit belt is a one-time install, so once it comes off, this serpentine belt gets replaced instead of refitted.

    Does this Gates drive belt need a special tool to install?

    Yes. Gates K060397SF calls for a special installation tool, and Instruction Sheet M comes with the belt.

    What are the rib count and length of this belt?

    This serpentine belt has 6 ribs, a K cross section and a 20 mm top width. Outside circumference is 1026 mm and effective length is 1010 mm.

    What are the ribs and cord made of in this Gates Micro-V serpentine belt?

    The ribs are EPDM and the tensile cord is nylon. Gates K060397SF is a Stretch Fit design with self-tensioning technology.
