Fuel Pump and Strainer Set for 1998-2004 Ford Mustang & More - GMB 525-1260

$99.99

Vehicles this part fits

    Part number: 525-1260
    UPC: 083286161481
    Condition: New
    Weight: 1.10 LBS
    Item Package Quantity: 1
    $99.99
    Adding to cart… The item has been added

    Have questions?

    GMB Fuel Pump and Strainer Set P/N:525-1260
    GMB Fuel Pump and Strainer Set P/N:525-1260
    $99.99
    $99.99

    Keep gasoline moving from the tank to the engine with the GMB Fuel Pump and Strainer Set 525-1260, a 12-volt in-tank electric fuel pump assembly that draws fuel from the tank and delivers it under pressure to the fuel system. It installs as a direct-fit replacement across a range of Ford applications, including the 2005-2007 F-250 Super Duty and F-350 Super Duty (V8-5.4L, V10-6.8L), the 1999-2007 F-450 Super Duty and F-550 Super Duty (V10-6.8L), and the 1998-2004 Mustang (V6-3.8L, V6-3.9L, V8-4.6L) — see the "Vehicles it fits" section for the full engine breakdown.

    • 12-volt operation: runs on gasoline with roughly 7.5 amps average current draw.
    • Rated output: up to 44 PSI maximum pressure and a 135 U.S. gallons-per-hour maximum flow rating.
    • Tested for reliability: 100% factory tested for leakage and dimensional precision, plus in-house pressure and flow-rate testing; durability tested during development and designed to reduce operating noise.

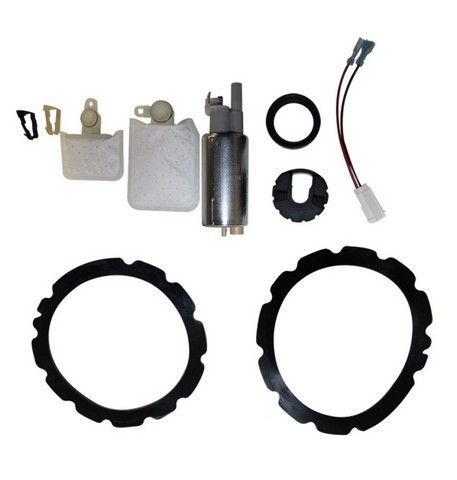

    • Includes installation hardware: 2 seals, 2 strainers, 2 wire harnesses, 2 wire clips, and 2 rubber guards. A sending unit is not included.

    Built to match or surpass OE specifications, this set replaces a worn or failing pump when weak fuel pressure, hard starting, or stalling traces back to the original pump. Country of origin: China.

    Interchange: E2366 · F1377 · P74195 · P76102 · P76397 · P88003 · FE0214 · 1R3Z9H307AA · 1R3Z9H307AB · 5C3Z9H307B · 5C3Z9H307CA · 6C3Z9H307CA · B0037E · EB366 · EB366C · P2020E · P2657 · SP1144 · A7010 · 152018

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    E2366, F1377, P74195, P76102, P76397, P88003, FE0214, 1R3Z9H307AA, 1R3Z9H307AB, 5C3Z9H307B, 5C3Z9H307CA, 6C3Z9H307CA, 5251260, B0037E, EB366, EB366C, P2020E, P2657, SP1144, A7010, 152018

    Frequently Asked Questions

    What does the GMB 525-1260 fuel pump set do?

    It's a 12-volt in-tank electric fuel pump and strainer set that draws gasoline from the tank and delivers it under pressure to the engine's fuel system.

    Which vehicles does it fit?

    Direct-fit for 2005-2007 Ford F-250 and F-350 Super Duty (V8-5.4L, V10-6.8L), 1999-2007 F-450 and F-550 Super Duty (V10-6.8L), and 1998-2004 Mustang (V6-3.8L, V6-3.9L, V8-4.6L). See the "Vehicles it fits" section.

    What are its pressure and flow ratings?

    It's rated up to 44 PSI maximum pressure and a 135 U.S. gallons-per-hour maximum flow rating, running on 12 volts with about 7.5 amps average current draw.

    Does it include a sending unit or hardware?

    No sending unit is included. The set comes with 2 seals, 2 strainers, 2 wire harnesses, 2 wire clips, and 2 rubber guards for installation.

    What are signs the fuel pump may need replacing?

    Hard starting, low fuel pressure, engine sputtering or stalling, or a whining pump can point to a failing pump. Diagnose the cause before replacing this part.
