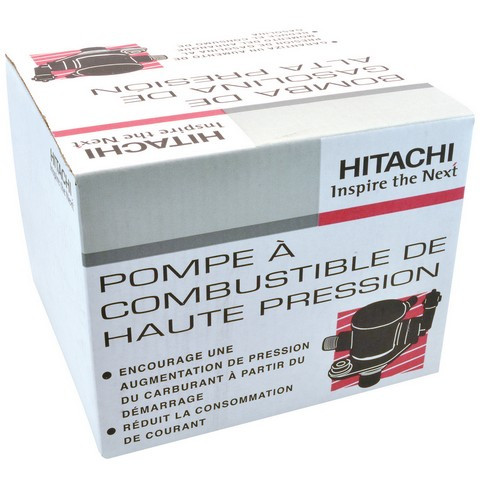

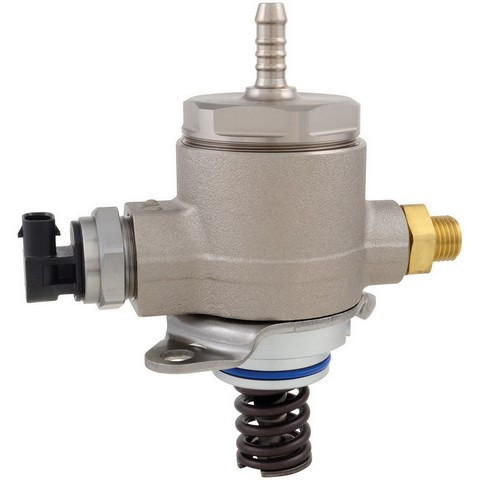

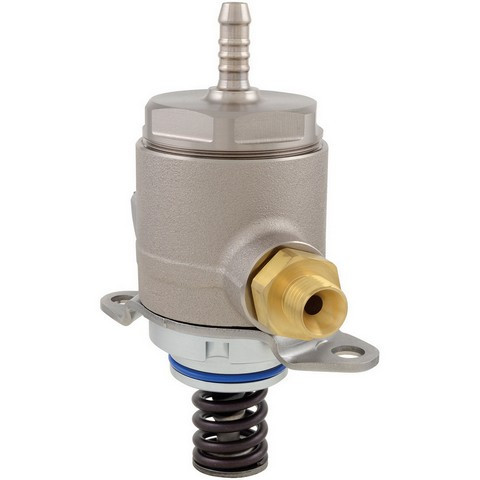

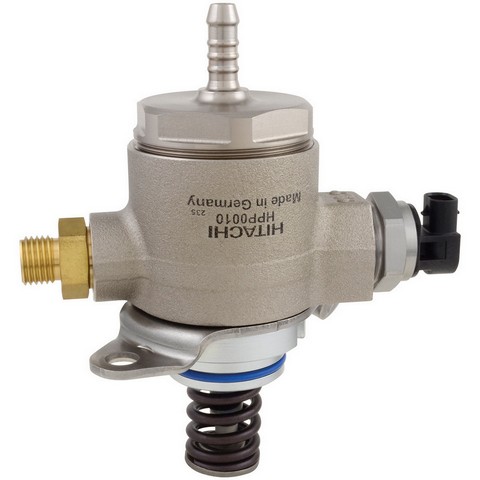

Supply your direct injection system with the high fuel pressure it depends on using the Hitachi Astemo Direct Injection High Pressure Fuel Pump HPP0010, a new Hitachi high pressure pump supplied as an actual OE part. It is a direct-fit replacement for the listed applications, including the 2009-2016 Audi A4 (L4-2.0L), 2009-2014 Volkswagen Tiguan (L4-2.0L), 2010-2012 Audi Q5 (V6-3.2L), 2011-2015 Audi Q7 (V6-3.0L), and 2012-2014 Audi A8 Quattro (W12-6.3L). Each listed application uses one pump. See the Buyer's Guide tab for the full list of Audi and Volkswagen applications.
A direct injection high pressure fuel pump takes fuel from the low-pressure supply and raises it to the much higher pressure the injectors need to spray fuel directly into the cylinders. Hard or long starting, hesitation under load, rough running, or fuel-pressure trouble codes are signs this part may need replacing. These symptoms can have other causes, so diagnose the fuel system first. If a failed pump is the cause, HPP0010 replaces it.
- Mechanical, external pump: a mechanical pump type, built as an external unit rather than an in-tank pump.
- Electrical connection: 12 volts DC, with a Hirschmann connector and male pin terminals.
- Package contents: a gasket or seal is not included. Consult the vehicle service information for the correct seal and installation procedure.
- Country of origin: Germany.
Interchange: 06J 127 025 D · 06J 127 025 E · 06J 127 025 F · 06J 127 025 G · 06J 127 025 J · 06J 127 025 K
HM10023 · 06J127025L · 06J127025D · 06J127025E · 06J127025F · 06J127025G · 06J127025J · 06J127025K
This part cross-references / interchanges with the following part numbers:
HM10023, 06J 127 025 D, 06J 127 025 E, 06J 127 025 F, 06J 127 025 G, 06J 127 025 J, 06J 127 025 K, 06J127025L
