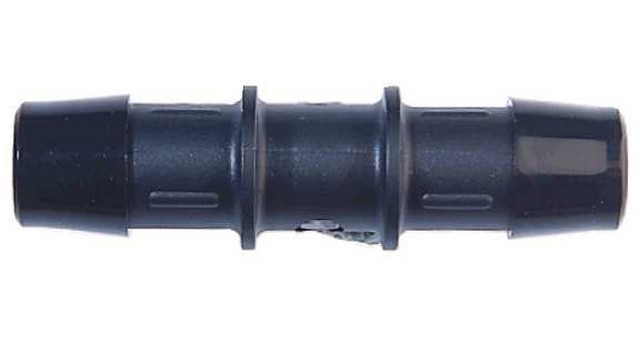

GATES 28604 cooling system components for the 2005-2018 Toyota Tacoma 2.7L and other vehicles: a straight plastic hose connector that joins one heater hose to the next.
- Unique single barb design for greater sealability between single or dual inside diameter hoses
- Glass reinforced nylon resists chemicals, gasoline, diesel fuels and temperatures from -40°F to 480°F (-40°C to 250°C)
- Bulkheads assure proper insertion depths
- Anti-rotation device prevents hose twisting
Coolant seeping or crusty residue at the joint, a cracked connector body or a hose that has worked loose can mean the connector needs replacing. With the engine off and cool, look over the connector and both hose ends first, since a worn hose or clamp can leak in the same way. The run takes a single connector, at the joint between hose 1 and hose 2.
It also fits the 2000-2003 Ford Focus 2.0L and the 2011-2018 Toyota Hilux 2.7L.
Specifications
Fit and size
- Position: heater to thermostat, bottom heater hose-1 to hose-2
- Quantity per vehicle: 1
- End 1 outside diameter: .625 in (15.9 mm)
Build and materials
- Type: straight connector
- Material: glass reinforced nylon
- Country of origin: United States
Interchange: 80422-5 · 80431-5 · 80653-5 · KY-1 · MC-1
34123 · MH5 · 28263A · 91304 · 80422 · 80431 · 80461 · 80653 · 47094 · 43000 · 64092 · 65095 · 65624 · 5101 · 9904 · 324000 · 48480
This part cross-references / interchanges with the following part numbers:
34123, MH5, 28263A, 28604, 91304, 80422, 80422-5, 80431, 80431-5, 80461, 80653, 80653-5, 47094, 43000, 64092, 65095, 65624, 5101, KY-1, MC-1, 9904, 324000, 48480
