Wheel Bearing and Hub Assembly for 2010-2017 Chevrolet Equinox & More - MOOG 513288

$173.99

Vehicles this part fits

    Part number: 513288
    UPC: 019826078155
    Condition: New
    Weight: 9.20 LBS
    Item Package Quantity: 1
    $173.99
    Adding to cart… The item has been added

    Have questions?

    MOOG Hub Assemblies Wheel Bearing and Hub Assembly P/N:513288
    MOOG Hub Assemblies Wheel Bearing and Hub Assembly P/N:513288
    $173.99
    $173.99

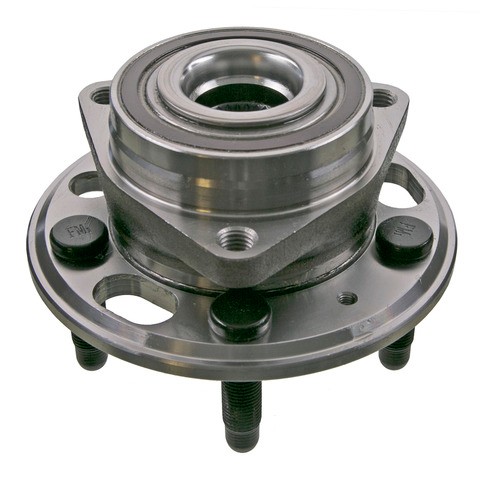

    MOOG 513288 wheel bearing and hub assembly for the 2010-2017 Chevrolet Equinox and other vehicles lets the wheel turn freely on its axle. This MOOG wheel hub combines the bearing and the flange the wheel bolts to in one unit.

    • Precise roll-form design sets a consistent, optimal factory-installed preload to minimize excessive noise and wear
    • Application-specific advanced raceway design reduces stress, rotation and heat on components
    • Quad lip seal design keeps moisture and other contaminants out
    • Coated wheel studs resist corrosion and rust for easier removal and proper torqueing
    • Tested by MOOG engineers throughout design and development

    Quick facts

    • Part: MOOG 513288 wheel bearing and hub assembly
    • Fits: the 2010-2017 Chevrolet Equinox and other vehicles
    • Position: Front, rear
    • Condition: New

    A humming or growling noise from a wheel that changes with speed, or play in the wheel, can point to a worn bearing. A worn tire, a brake rotor or a loose suspension joint can make similar noises, so track down the source of the sound before you buy.

    Fits

    The 2013-2015 Chevrolet Malibu and the 2014-2017 Chevrolet Impala are among the other vehicles this assembly fits. Open the "Vehicles it fits" section to check your exact model and engine. Each vehicle takes two, one on each side of the axle. Both sides on an axle are normally replaced together, and this listing is one assembly.

    Specifications

    Fit and size

    • Position: front, rear
    • Quantity per vehicle: 2
    • Bolt circle diameter: 120 mm, 3 flange bolt holes
    • Flange diameter: 156.9 mm
    • Brake pilot diameter: 67.3 mm
    • Flange offset: 42 mm

    Build and materials

    • Condition: new
    • Wheel studs: coated
    • ABS sensor: not included
    • Country of origin: Taiwan

    In the box

    One wheel bearing and hub assembly. The ABS sensor is not included.

    Interchange: 91-258036 · 94-508502
    WE60838 · G513288 · H513288 · BR930777 · HA590486

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    WE60838, 91-258036, 94-508502, G513288, H513288, BR930777, HA590486

    Frequently Asked Questions

    Is this the Chevy Impala wheel bearing for a 2014-2017 Chevrolet Impala?

    Yes. MOOG 513288 is listed for the 2014-2017 Chevrolet Impala, and each car takes two. Use the "Vehicles it fits" section to check your exact engine.

    Can I use these MOOG front wheel bearings at the rear too?

    Yes. MOOG 513288 is listed for both the front and rear positions. This listing is one wheel bearing and hub assembly.

    Does the MOOG 513288 hub bearing assembly include the ABS sensor?

    No. The ABS sensor is not included. This listing is the wheel bearing and hub assembly only.

    What are the bolt circle and flange sizes of this hub?

    MOOG 513288 has a 120 mm bolt circle with 3 flange bolt holes, a 156.9 mm flange diameter and a 67.3 mm brake pilot diameter. Flange offset is 42 mm.

    What kind of seal does this hub assembly use?

    This hub assembly has a quad lip seal design that keeps moisture and other contaminants out. Its raceway design is application-specific, to reduce stress, rotation and heat.
