Timing Chain Kit for 2009-2019 Toyota Corolla & More - INA US ZC-76275T

$189.99

Vehicles this part fits

    Part number: ZC-76275T
    UPC: 670774655876
    Condition: New
    Weight: 5.30 LBS
    Item Package Quantity: 1
    $189.99
    Adding to cart… The item has been added

    Have questions?

    INA US Engine Timing Chain Kit P/N:ZC-76275T
    INA US Engine Timing Chain Kit P/N:ZC-76275T
    $189.99
    $189.99

    INA US ZC-76275T timing chain kit for the 2009-2019 Toyota Corolla 4-cylinder 1.8L and other vehicles links the crankshaft to the camshaft to keep the engine's timing in step. Sold as an engine timing chain kit, it supplies the main chain-drive parts; some pieces are not included, as listed below.

    • INA CDC kit with a timing chain, tensioner, chain guides and crankshaft sprocket
    • Components engineered for the highest torque and torque spikes in the engine's operating range
    • Precise tolerances on each component to minimize parasitic drag and wear
    • Chain smoothened, accurately set and pinned for low friction, even load distribution and quiet operation
    • Quality control through testing and tolerance management at each critical manufacturing stage

    Quick facts

    • Part: INA US ZC-76275T timing chain kit
    • Also called: engine timing chain kit
    • Fits: 2009-2019 Toyota Corolla 4-cylinder 1.8L and other vehicles
    • Condition: New

    A rattle from the front of the engine, a timing-related warning light or rough running can mean the chain, guides or tensioner are worn, though a faulty camshaft position sensor or a weak ignition coil can sit behind some of the same signs.

    Fits

    The vehicles it fits include the 2009-2019 Toyota Corolla 4-cylinder 1.8L, the 2010-2019 Toyota Prius 4-cylinder 1.8L and the 2019 Toyota Prius AWD-e 4-cylinder 1.8L, and each takes one kit. Driving something else? Enter your car in the "Vehicles it fits" section to see whether this kit is listed for it.

    Specifications

    Fit and size

    • Engine: 4-cylinder 1.8L
    • Quantity per vehicle: 1
    • Timing chain quantity: 1

    Build and materials

    • Type: chain kit
    • Condition: New
    • Country of origin: Taiwan

    In the box

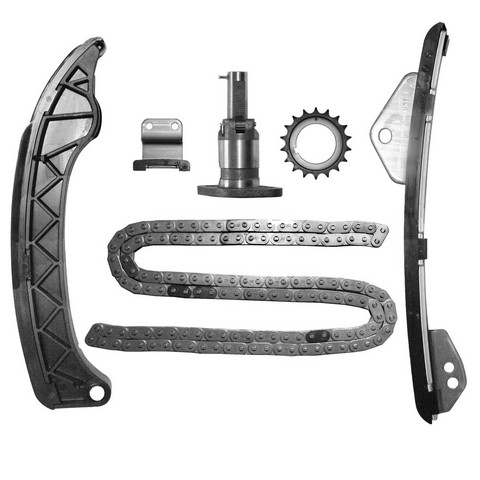

    One timing chain, a tensioner, chain guides and a crankshaft sprocket. Camshaft sprockets, drive sprocket, gaskets, oil pump drive and VVT components are not included.

    Interchange: 13506-0T020 · 13519-37010 · 13521-0T030 · 13540-0T020 · 13559-0T020 · 13561-0T020 · 13562-0T020 · 9-6252
    5591617100 · 76275T

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    5591617100, 13506-0T020, 13519-37010, 13521-0T030, 13540-0T020, 13559-0T020, 13561-0T020, 13562-0T020, 9-6252, 76275T

    Frequently Asked Questions

    Is the ZC-76275T a Toyota Corolla timing chain kit for the 2009-2019 4-cylinder 1.8L?

    Yes. INA US ZC-76275T is listed for the 2009-2019 Toyota Corolla 4-cylinder 1.8L, and each takes one kit. For other cars, look yours up in the "Vehicles it fits" section.

    Does the ZC-76275T fit the 2010-2019 Toyota Prius 4-cylinder 1.8L?

    Yes. It is listed for the 2010-2019 Toyota Prius 4-cylinder 1.8L and also for the 2019 Toyota Prius AWD-e 4-cylinder 1.8L, one kit each.

    Does this INA timing chain kit include camshaft sprockets or gaskets?

    No. The kit has the timing chain, tensioner, chain guides and crankshaft sprocket. Camshaft sprockets, drive sprocket, gaskets, oil pump drive and VVT components are not included.

    What kind of noise can a worn timing chain kit make?

    A rattle from the front of the engine can mean a worn chain, guide or tensioner. Have it checked promptly rather than driving on it.

    Does the INA ZC-76275T replace the number 13540-0T020?

    Yes. 13540-0T020 is on the interchange list for INA US ZC-76275T, along with 13506-0T020, 13519-37010 and 9-6252.
