Front Timing Chain Kit for 2011-2016 Ford F-150 - INA US ZC-9-0738SA

$510.99

Vehicles this part fits

    Part number: ZC-9-0738SA
    UPC: 670774654657
    Condition: New
    Weight: 5.88 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $510.99
    Adding to cart… The item has been added

    Have questions?

    INA US Engine Timing Chain Kit P/N:ZC-9-0738SA
    INA US Engine Timing Chain Kit P/N:ZC-9-0738SA
    $510.99
    $510.99

    INA US ZC-9-0738SA front timing chain kit for the 2011-2016 Ford F-150 V6 3.5L keeps the crankshaft and camshafts turning in step. This engine timing chain kit is built for the oil drive and timing system.

    • INA CDC timing chain kit with oil pump drive elements included
    • Built to endure high torque and torque spikes across the engine's operating range
    • High-grade materials chosen to meet specific automotive requirements
    • Tight tolerances on each component to minimize parasitic drag and wear
    • Chain is smoothened, accurately set and pinned for low friction and even load distribution
    • Tolerance management and testing at each critical manufacturing stage

    Quick facts

    • Part: INA US ZC-9-0738SA timing chain kit
    • Also called: engine timing chain kit
    • Fits: 2011-2016 Ford F-150 V6 3.5L
    • Position: Front
    • Condition: New

    A rattle from the front of the engine, rough running or a check engine light with timing-related codes can point to a worn timing chain. Camshaft or crankshaft position sensors and low oil pressure can be behind those signs too, so find the cause before buying a kit.

    Fits

    This kit fits the 2011-2016 Ford F-150 V6 3.5L, which takes one.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 1
    • Timing chains in the kit: 2

    Build and materials

    • Condition: New
    • Country of origin: China

    In the box

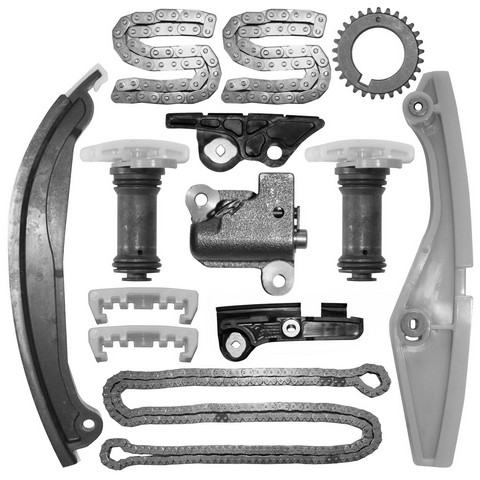

    Two timing chains, a tensioner, chain guides, a crankshaft sprocket and oil pump drive elements. A camshaft sprocket, a drive sprocket and gaskets are not included.

    Interchange: 9-0738SA · AT4Z-6B274-A · AT4Z-6K254-A · AT4Z-6K255-A · AT4Z-6K297-B · BL3Z-6L266-A · JL3Z-6K297-A · 9-6283 · 3-1049S
    AT4Z 6268 A · AT4Z 6306 A · BL3Z 6268 A · 5591485100 · 76302

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    9-0738SA, AT4Z 6268 A, AT4Z 6306 A, AT4Z-6B274-A, AT4Z-6K254-A, AT4Z-6K255-A, AT4Z-6K297-B, BL3Z 6268 A, BL3Z-6L266-A, JL3Z-6K297-A, 5591485100, 9-6283, 3-1049S, 76302

    Frequently Asked Questions

    Does the INA US ZC-9-0738SA timing chain kit fit a 2011-2016 Ford F-150 V6 3.5L?

    Yes. INA US ZC-9-0738SA is a front timing chain kit for the 2011-2016 Ford F-150 V6 3.5L.

    Does this timing chain kit come with a camshaft sprocket or gaskets?

    No. The kit has two timing chains, a tensioner, chain guides, a crankshaft sprocket and oil pump drive elements. A camshaft sprocket, a drive sprocket and gaskets are not included.

    How many timing chains are in the INA US ZC-9-0738SA kit?

    Two. INA US ZC-9-0738SA includes two timing chains along with a tensioner and chain guides, and one kit is used per application.

    Can a rattle at the front of the engine mean a timing chain kit is due?

    It can, as can rough running or a timing-related check engine light, since a stretched chain or worn guides may be involved. Have it checked promptly rather than driving on a suspect timing chain.

    How is the chain in this INA CDC timing chain kit made?

    The chain is smoothened, accurately set and pinned with precision control for low friction and even load distribution.
