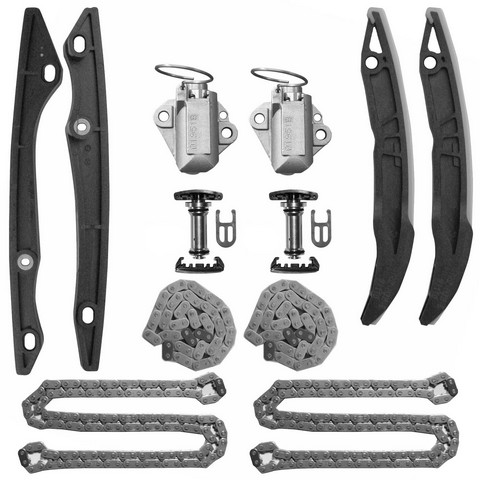

INA US ZC-9-0757SX timing chain kit for the 2015-2020 Ford F-150 V8 5.0L and other vehicles links the crankshaft to the camshafts. It is the INA CDC version, made for engines whose timing sprockets show no wear.
- Components made to endure high torque and torque spikes across the engine's operating range
- Precise tolerances on each component to minimize parasitic drag and wear
- Chain made to precise standards for compatibility with the original sprockets
- Chain smoothed, accurately set and pinned for low friction, even load distribution and quiet operation
- Tolerance management and testing at each critical manufacturing stage
Quick facts
- Part: INA US ZC-9-0757SX timing chain kit
- Also called: engine timing chain kit
- Fits: 2015-2020 Ford F-150 V8 5.0L and other vehicles
- Condition: New
A stretched chain or worn guides can show up as rattling from the front of the engine, rough running or a check engine light. Before you replace this kit, have a shop rule out other sources of those signs, since a noise or warning light does not always trace to the timing drive.
Fits
The 2015-2020 Ford F-150 V8 5.0L takes one kit, and the same kit works as a timing chain kit for the 2015-2017 Ford Mustang V8 5.0L, which also takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Timing chains in the kit: 2
Build and materials
- Grade type: Premium
- Condition: New
- Country of origin: Taiwan
In the box
Two timing chains, a tensioner and chain guides. Gaskets and the camshaft, crankshaft and drive sprockets are not included.
Interchange: 9-0757SX · BR3Z 6268 A · BR3Z-6B274-A · BR3Z-6K254-B · BR3Z-6M256-A · FR3Z 6268 A · JL3Z-6K255-A · JL3Z-6L266-B · 3-1069SX
5591671100 · 76353S
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
9-0757SX, BR3Z 6268 A, BR3Z-6B274-A, BR3Z-6K254-B, BR3Z-6M256-A, FR3Z 6268 A, JL3Z-6K255-A, JL3Z-6L266-B, 5591671100, 3-1069SX, 76353S
Frequently Asked Questions
Is INA US ZC-9-0757SX the right timing chain kit for a 2015-2020 Ford F-150 V8 5.0L?
Yes. INA US ZC-9-0757SX is listed for the 2015-2020 Ford F-150 V8 5.0L, and that engine takes one kit per vehicle.
What comes with INA US ZC-9-0757SX besides the chains?
A tensioner and chain guides. Gaskets and the camshaft, crankshaft and drive sprockets are not included.
Does this engine timing chain kit include one chain or two?
Two. This INA US kit contains two timing chains, plus the tensioner and chain guides.
Can I use this kit if my timing sprockets are worn?
No. This version is for engines with no wear on the timing sprockets, and sprockets are not included, so worn ones need to be replaced separately.
Does INA US ZC-9-0757SX replace part number BR3Z-6B274-A?
Yes. BR3Z-6B274-A is on the interchange list for INA US ZC-9-0757SX, along with other numbers such as 9-0757SX and 3-1069SX.
