INA US Engine Timing Chain Tensioner Piston,Engine Timing Chain Tensioner P/N:ZT0023

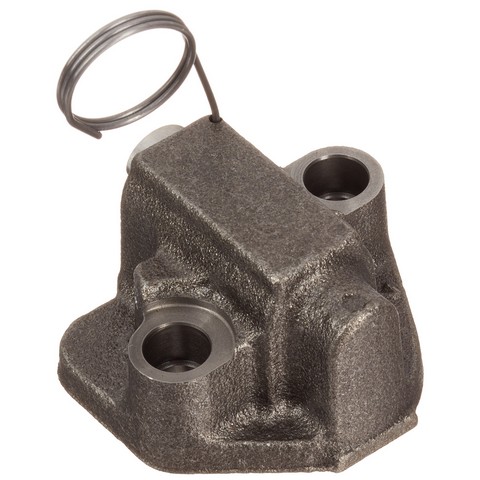

INA US ZT01491 right timing chain tensioner for the 2010-2012 Chevrolet Equinox V6 3.0L, the 2013-2015 Equinox V6 3.6L and other vehicles keeps the timing chain under tension so the timing drive transmits power correctly. Some shops list it as an engine timing chain tensioner.
Before you replace this tensioner, rule out a stretched chain, worn guides or a faulty cam or crank sensor, since a rattle at the front of the engine or a timing-related code can come from any of them. If the tensioner is the cause, this one replaces it. This listing is one tensioner for the right side; each application takes one on that side.
It is listed for a wide range of Chevrolet, Buick, Cadillac, GMC, Pontiac and Saturn models, including the 2012-2015 Chevrolet Impala V6 3.6L and the 2009-2015 Chevrolet Traverse V6 3.6L.
Fit and size
Build and materials
Interchange: 9-5536 · 6 36 256 · 12832-78J01
12609259 · 5510149100 · BT5536 · T68002 · 91031
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is this the right Chevy Equinox timing chain tensioner for a 2013-2015 V6 3.6L?
Yes, INA US ZT01491 is listed for the 2010-2012 Chevrolet Equinox V6 3.0L and the 2013-2015 Equinox V6 3.6L; for any other car, find it in the "Vehicles it fits" section on the product page.
Is the INA US ZT01491 a left or right timing chain tensioner?
It is the right-side tensioner, and this listing is one piece. Each application takes one on the right side.
Does the ZT01491 cross-reference to number 12609259?
Yes, 12609259 is one of the interchange numbers listed for the INA US ZT01491 tensioner; the rest are on the Interchange line.
How can I tell if a right timing chain tensioner is failing?
A rattle from the front of the engine or a timing-related warning light can be a sign of a worn tensioner. A shop can inspect the timing drive to confirm.
What does the INA CDC tensioner do in the timing drive?
This right timing chain tensioner presses on the chain to take up slack. That helps the timing drive keep the correct gear ratios and run reliably.
