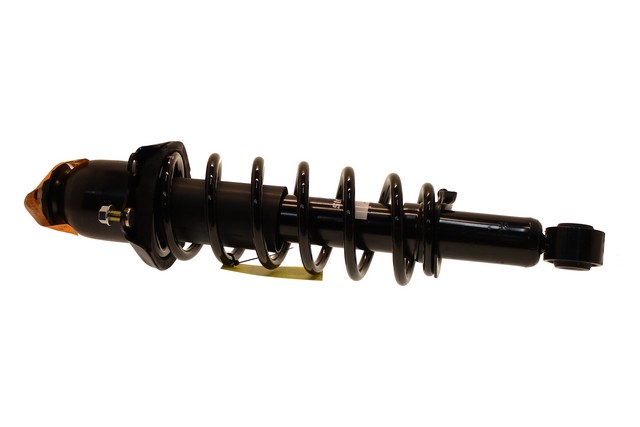

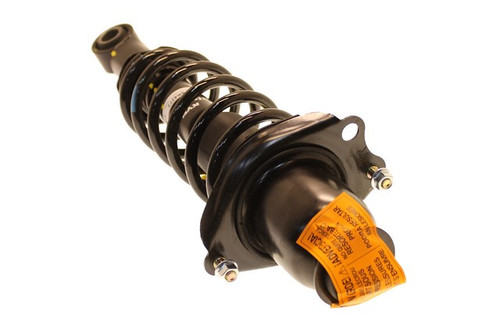

KYB SR4273 rear right strut assembly for the 2003-2008 Toyota Corolla supports the car's weight and sets ride height at that corner. This KYB strut assembly, also called a complete strut and coil spring assembly, joins the strut, mount and spring in one corner unit.
- KYB Strut-Plus line of strut and spring assemblies
- KYB Excel-G strut with a stronger steel outer shell and application-specific precision damping valves
- High carbon steel coil spring developed around the car's corner weights to help restore ride height
- Side-specific design and components, with separate left and right part numbers
- Engineered to help vehicles with electronic safety systems such as ESC and ABS
Quick facts
- Part: KYB SR4273 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2003-2008 Toyota Corolla
- Position: Rear right
- Condition: New
A rear corner that sits low, clunks over bumps or wears the tire unevenly may mean a worn strut, but a spring or mount could be behind it instead. Before ordering, look over the strut body for an oily film and the boot for cracks with the engine off; a shop can check anything further.
Fits
It is a direct-fit strut replacement for the rear right of the 2003-2008 Toyota Corolla. Rear struts are normally replaced as a pair, and this listing is one strut; the rear left is a separate part. The 2003-2008 Toyota Corolla takes one on each side of the rear axle.
Specifications
Fit and size
- Position: Rear right
- Quantity per application: 1
- Stroke length: 4.14 in
- Compressed length: 12.55 in
- Extended length: 16.69 in
Build and materials
- Type: Strut and coil spring assembly (Strut-Plus)
- Internal rebound spring and rebound bumper
- Condition: New
- Country of origin: Taiwan
In the box
One strut assembly with its bump stop and boot.
Installation notes
- Arrives pre-assembled with the strut, mount and spring, with exact fitment engineered for professional results.
Interchange: 171373R
Frequently Asked Questions
Is the KYB SR4273 strut for the rear right of the 2003-2008 Toyota Corolla?
Yes. KYB SR4273 is the rear right strut assembly for the 2003-2008 Toyota Corolla; the rear left takes its own part number.
Does this KYB complete strut assembly come with the spring and mount?
Yes. The unit combines the strut, mount and coil spring, and includes a bump stop and boot.
What are the extended and compressed lengths of the KYB SR4273?
KYB SR4273 measures 16.69 in extended and 12.55 in compressed, with a 4.14 in stroke.
Is the KYB SR4273 one of the KYB loaded struts that uses an Excel-G strut?
Yes. This Strut-Plus unit includes a KYB Excel-G strut with a stronger steel outer shell and application-specific precision damping valves.
Is 171373R another number for KYB complete struts like the SR4273?
171373R is the other number listed for KYB SR4273, so a search under either number leads to this rear right unit.
