Front Left Strut Assembly for 2007-2021 Toyota Tundra - KYB SR4466

$267.99
video
video

Vehicles this part fits

    Part number: SR4466
    UPC: 781552885290
    Condition: New
    Weight: 21.50 LBS
    Item Package Quantity: 1
    $267.99
    Adding to cart… The item has been added

    Have questions?

    KYB Suspension Strut and Coil Spring Assembly P/N:SR4466
    KYB Suspension Strut and Coil Spring Assembly P/N:SR4466
    $267.99
    $267.99

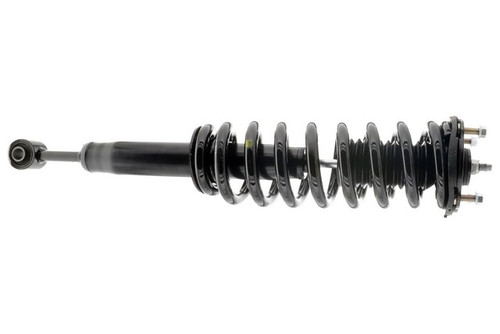

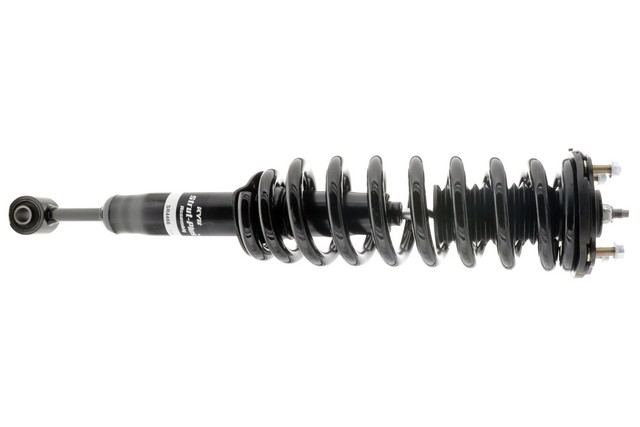

    KYB SR4466 front left strut assembly for the 2007-2021 Toyota Tundra carries vehicle weight and sets ride height at the front left corner. Sold as a complete strut and coil spring assembly, it comes pre-assembled with the strut, mount and spring.

    • KYB Strut-Plus line: a complete corner unit with strut, mount and spring
    • KYB Excel-G strut with a stronger steel outer shell and precision damping valves
    • High carbon steel coil spring matched to the strut to maintain ride height and control weight
    • Bump stop, internal rebound bumper and boot included
    • Side-specific design and components, with separate left and right part numbers
    • Engineered to help vehicles with electronic safety systems such as ESC and ABS

    Quick facts

    • Part: KYB SR4466 strut assembly
    • Also called: complete strut and coil spring assembly
    • Fits: 2007-2021 Toyota Tundra
    • Position: Front left
    • Condition: New

    A leaking strut, a bouncy ride, nose dive under braking or a clunk over bumps can mean a worn strut assembly. Worn tires, a loose sway bar link or a tired control arm bushing can be behind some of those signs too, so find the cause before you buy.

    Fits

    This listing is one strut assembly for the front left of the 2007-2021 Toyota Tundra, which takes one per side. The front right has its own part number, and the two sides are normally replaced together.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity for this side: 1
    • Stroke length: 5.36 in
    • Compressed length: 18.18 in
    • Extended length: 23.54 in

    Build and materials

    • Coil spring: high carbon steel
    • Includes bump stop, internal rebound bumper and boot
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One strut assembly with the strut, mount, coil spring, bump stop and boot.

    Interchange: 171119L

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    171119L

    Frequently Asked Questions

    Does the KYB front strut assembly SR4466 fit the 2007-2021 Toyota Tundra?

    Yes. KYB SR4466 is the front left strut assembly for the 2007-2021 Toyota Tundra, one per side. The front right is a separate part.

    Do KYB complete struts like the SR4466 include a bump stop and boot?

    Yes. KYB SR4466 comes with the strut, mount and coil spring, plus a bump stop, an internal rebound bumper and a boot.

    How long is this KYB complete strut assembly when extended and compressed?

    This strut assembly measures 23.54 in extended and 18.18 in compressed, with a stroke length of 5.36 in.

    Is this one of the KYB loaded struts with an Excel-G strut inside?

    Yes. KYB SR4466 includes a KYB Excel-G strut with a stronger steel outer shell and application-specific damping valves, pre-assembled with its coil spring.

    Can I keep driving with a leaking front strut assembly?

    No. A leaking strut, a bouncing ride or a clunk over bumps means the suspension should be checked and the strut replaced promptly, since struts affect handling and stability.
