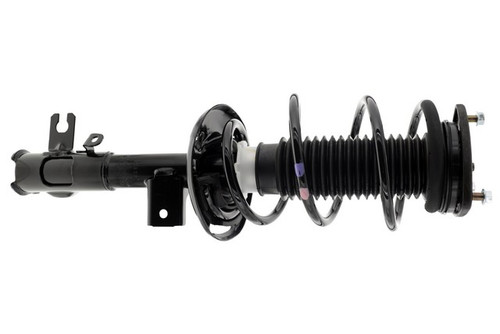

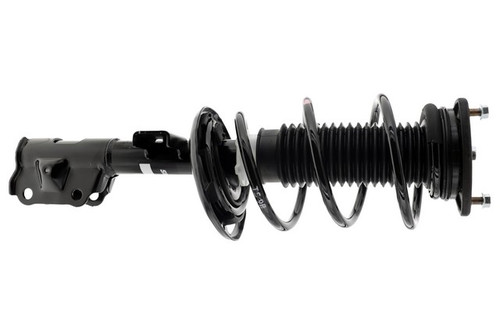

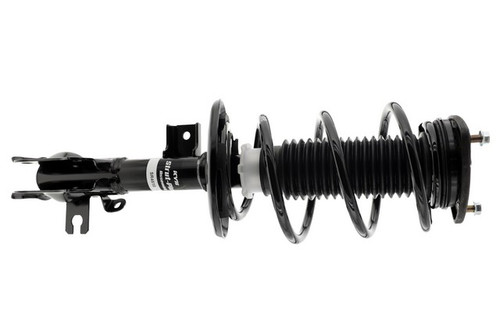

KYB SR4510 front right strut assembly for the 2014-2018 Mazda 3 carries vehicle weight, sets ride height and acts as the steering pivot at that corner. This complete strut and coil spring assembly is part of the KYB Strut-Plus line, which is engineered to help restore the handling and control of the vehicle.
- KYB Strut-Plus line: strut, mount and spring pre-assembled as one corner unit
- KYB Excel-G strut with a stronger steel outer shell and application-specific precision damping valves
- High carbon steel coil spring matched to the strut to help restore ride height
- Side-specific design and components, with separate left and right part numbers
- Engineered to help vehicles with electronic safety systems such as ESC and ABS
Quick facts
- Part: KYB SR4510 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2014-2018 Mazda 3
- Position: Front right
- Condition: New
Worn tires, sway bar links, ball joints and bushings can be behind a rough ride, so find the cause before buying. An oily strut body, a car that sits low or a bounce after bumps can also mean the strut is worn. This listing is a single piece, and the two front sides are normally replaced together.
Fits
This assembly is designed for proper ride height and original handling on the 2014-2018 Mazda 3.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1 for this position
- Stroke length: 6.52 in
- Compressed length: 14.76 in
- Extended length: 21.28 in
Build and materials
- Construction: complete assembly with strut, mount and coil spring
- Coil spring: high carbon steel
- Internal rebound bumper: included
- Condition: new
- Country of origin: Taiwan
In the box
One front right strut assembly with the strut, mount, coil spring, bump stop and boot. The 2014-2018 Mazda 3 takes one for this position; the front left is ordered separately.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the KYB complete strut assembly SR4510 fit the 2014-2018 Mazda 3?
Yes. KYB SR4510 is the front right strut assembly for the 2014-2018 Mazda 3; the front left side uses its own part number.
Do KYB complete struts like this one come with the mount and coil spring?
Yes. This front right strut assembly comes pre-assembled with the strut, mount and coil spring, plus a bump stop and a boot.
What are the extended and compressed lengths of this KYB front strut assembly?
KYB SR4510 extends to 21.28 in and compresses to 14.76 in, a stroke length of 6.52 in.
Are KYB loaded struts like this one sold for one side or both?
One side. This listing is the front right only; the front left has its own part number with side-specific components.
What can a leaking body or torn boot on a front strut assembly mean?
An oily strut body, a torn boot or a bouncy ride after bumps can mean the strut is worn, and a shop can confirm it. This assembly includes a boot and an internal rebound bumper.
