Right Cylinder Head Gasket for 1997-2010 Ford Explorer & More - MAHLE 54195

$56.99

Vehicles this part fits

    Part number: 54195
    UPC: 757522602396
    Condition: New
    Weight: 0.64 LBS
    Item Package Quantity: 1
    $56.99
    Adding to cart… The item has been added

    Have questions?

    MAHLE Engine Cylinder Head Gasket P/N:54195
    MAHLE Engine Cylinder Head Gasket P/N:54195
    $56.99
    $56.99

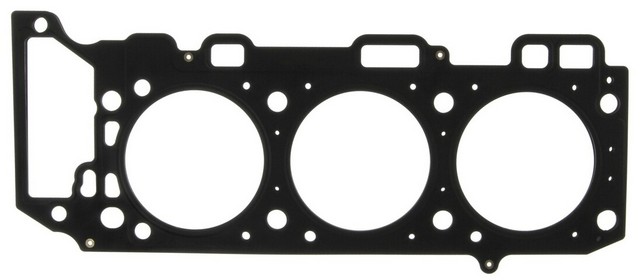

    MAHLE 54195 right cylinder head gasket for the 1997-2010 Ford Explorer V6 4.0L and other vehicles seals the joint between the cylinder head and the engine block. Also called an engine cylinder head gasket, this one is made for the right side.

    • Multi-layered steel construction
    • 0.64 mm (0.025 in) thickness
    • 102.36 mm (4.030 in) cylinder bore diameter
    • Torque to yield: yes, with cylinder head bolt replacement recommended

    Quick facts

    • Part: MAHLE 54195 cylinder head gasket
    • Also called: engine cylinder head gasket
    • Fits: 1997-2010 Ford Explorer V6 4.0L and other vehicles
    • Position: Right
    • Material: Multi-Layered Steel
    • Condition: New

    Coolant or oil seeping along the head-to-block joint, overheating or white exhaust smoke can mean a head gasket is leaking, though other faults share those signs. With the engine off and cool, look along the joint for wet or crusty residue and check the coolant level before ordering. This listing is one gasket for the right side; the left side is a separate part, and both are normally replaced together. The 2005-2010 Ford Mustang V6 4.0L takes one on its right side.

    Fits

    The 1997-2010 Ford Explorer V6 4.0L, the 2005-2010 Ford Mustang V6 4.0L and the 2001-2011 Ford Ranger V6 4.0L all take this gasket, and so do other vehicles. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Position: Right
    • Quantity per application: 1
    • Thickness: 0.64 mm (0.025 in)
    • Cylinder bore diameter: 102.36 mm (4.030 in)

    Build and materials

    • Material: Multi-layered steel
    • Torque to yield: Yes
    • Gasket sealant: not included
    • Condition: New
    • Country of origin: Germany

    In the box

    One cylinder head gasket. Gasket sealant is not included.

    Interchange: 1L2Z 6051-CA · 4L5Z 6051-AA · 7L5Z 6051-A · F77Z 6051-AF · 1F72 10-271
    26301 PT · 449 0955 · LR0 03548

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    26301 PT, 1L2Z 6051-CA, 4L5Z 6051-AA, 7L5Z 6051-A, F77Z 6051-AF, 449 0955, LR0 03548, 1F72 10-271

    Frequently Asked Questions

    Is this a Ford Ranger cylinder head gasket for 2001-2011 models with the V6 4.0L?

    Yes. MAHLE 54195 is listed for the 2001-2011 Ford Ranger V6 4.0L, and it is the right-side gasket. Open the "Vehicles it fits" section to check your exact engine.

    Is this the cylinder head gasket for a 2005-2010 Ford Mustang V6 4.0L?

    Yes. MAHLE 54195 is listed for the 2005-2010 Ford Mustang V6 4.0L as the right-side gasket. The left side is a separate part ordered on its own.

    Does this head gasket come with sealant or head bolts?

    No. The package contains the cylinder head gasket only, and gasket sealant is not included. The cylinder head bolts are not part of it; replacing them is recommended.

    How thick is this multi-layered steel head gasket, and what is its bore size?

    MAHLE 54195 is 0.64 mm (0.025 in) thick with a 102.36 mm (4.030 in) cylinder bore diameter. The material is multi-layered steel.

    Does MAHLE 54195 replace Ford number 1L2Z 6051-CA?

    Yes. 1L2Z 6051-CA is one of the numbers this MAHLE 54195 gasket replaces. The other cross-reference numbers are on the Interchange line.
