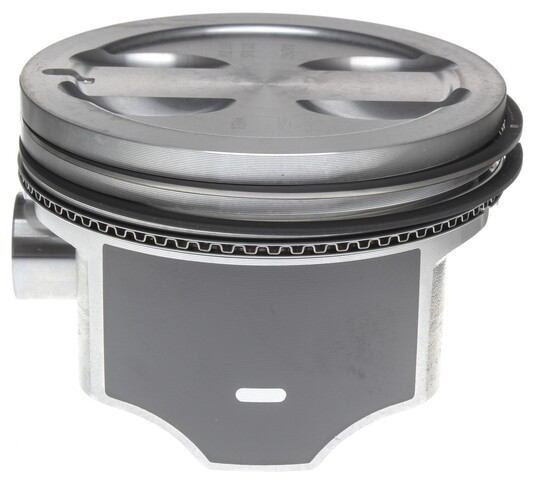

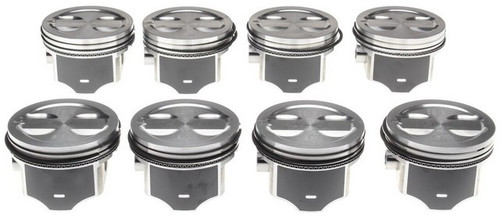

MAHLE Engine Piston Set P/N:224-3861WR-0.50MM (Pack of 8)
MAHLE 224-3940WR-0.50MM engine piston for the 1996-1999 Chevrolet C1500 V8 5.7L and other vehicles turns combustion pressure into force on the connecting rod. It is an OE-quality piston, oversized by 0.50 mm.
Piston slap, blue exhaust smoke or rising oil use can come with worn pistons. These signs alone do not prove the piston is the problem, since worn rings or valve seals can burn oil too.
This oversized piston is a direct-fit replacement for the 1996-1999 Chevrolet C1500 V8 5.7L, the 1996-1999 Chevrolet K1500 V8 5.7L and the 1996-2000 Chevrolet Tahoe V8 5.7L. The 1996-1999 Chevrolet C1500 V8 5.7L takes eight pistons. For a different truck or van, look up your year and model in the "Vehicles it fits" section.
Fit and size
Build and materials
Product information is for general reference and may contain errors. See our Disclaimer.
Does the MAHLE 224-3940WR-0.50MM piston fit a 1996-1999 Chevrolet K1500 V8 5.7L?
Yes. MAHLE 224-3940WR-0.50MM fits the 1996-1999 Chevrolet K1500 V8 5.7L and the 1996-2000 Chevrolet Tahoe V8 5.7L. Other trucks and vans are in the "Vehicles it fits" section.
Is this MAHLE piston oversized, and by how much?
Yes. MAHLE 224-3940WR-0.50MM is an oversized piston, 0.50 mm as the part number shows.
What are the piston pin and ring sizes on this piston?
The piston pin outside diameter is 23.56 mm. The second compression ring is 1.50 mm thick and the oil ring is 3.00 mm thick.
Is this piston aluminum, and what kind of head does it have?
Yes, this piston is aluminum, with a dish-type head.
Could blue exhaust smoke or a knocking noise mean a piston is worn?
They can come with worn pistons, rings or cylinders, and rising oil use can too. A shop can confirm the cause with a compression or leak-down test.
