Front Left Strut Mount for 1998-2003 Toyota Sienna & More - DEA MOUNTS 4713316

$79.99

Vehicles this part fits

    Part number: 4713316
    UPC: 139861338240
    Condition: New
    Weight: 3.18 LBS
    Item Package Quantity: 1
    $79.99
    Adding to cart… The item has been added

    Have questions?

    Marmon Ride Control Suspension Strut Mount P/N:4713316
    Marmon Ride Control Suspension Strut Mount P/N:4713316
    $79.99
    $79.99

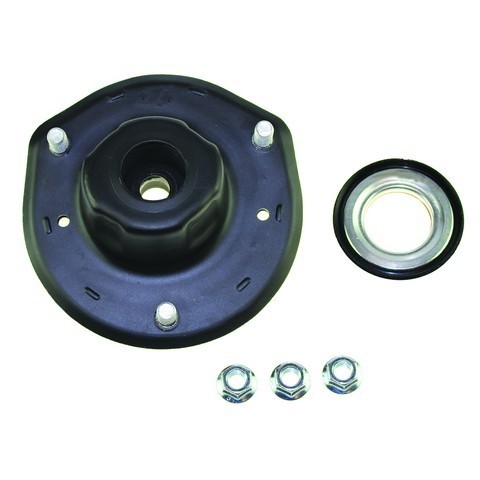

    DEA MOUNTS 4713316 front left strut mount for the 1998-2003 Toyota Sienna and other vehicles joins the top of the strut to the vehicle body.

    • Steel and rubber mount body
    • Bearing included and pre-greased
    • Three studs; thread size M10x1.25
    • Nuts and hardware included
    • Inner and outer bearing races made of steel

    Quick facts

    • Part: DEA MOUNTS 4713316 strut mount
    • Also called: suspension strut mount
    • Fits: 1998-2003 Toyota Sienna and other vehicles
    • Position: Front Left
    • Material: Steel and rubber
    • Condition: New

    Clunking or knocking over bumps, noise when you turn the wheel, or vibration through the front end can mean the suspension strut mount is worn, though the strut itself or a control arm bushing can be behind the same signs.

    Fits

    This front left strut mount is made for the 1998-2003 Toyota Sienna, the 1997-2001 Toyota Camry and the 1997-2004 Toyota Avalon, among other Toyota and Lexus models. Driving something else? Look up your own year and model in the "Vehicles it fits" section. This listing is one mount for the front left, which is all the 1998-2003 Toyota Sienna takes at that corner; the front right is a separate part, and both sides are normally replaced together.

    Specifications

    Fit and size

    • Position: front left
    • Quantity per vehicle: 1
    • Stud quantity: 3
    • Thread size: M10x1.25
    • Inside diameter: 0.6
    • Outside diameter: 5.84
    • Mount length: 5.84
    • Mounting stud length: 0.81

    Build and materials

    • Material: steel and rubber
    • Bearing: included, pre-greased, not greaseable
    • Inner and outer race material: steel
    • Condition: new
    • Country of origin: China

    In the box

    One strut mount with its bearing, nuts and hardware. A bolt, washer, spacer, spring seat, bumper, bellows, sleeve, snap ring, insulator and bushing are not included, so plan on new bolts rather than reusing the old ones.

    Interchange: 142650 · SM5180 · 903906 · K90237 · 2613316 · 4860906060 · 4860906061 · 4860906081 · 4860908010 · 4860933110 · 4860933120 · 4860933121 · 4861908010 · 9008036070 · 9090363002 · 9090363014

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    142650, SM5180, 903906, K90237, 2613316, 4860906060, 4860906061, 4860906081, 4860908010, 4860933110, 4860933120, 4860933121, 4861908010, 9008036070, 9090363002, 9090363014

    Frequently Asked Questions

    Is this the right 1997-2001 Toyota Camry strut mount for the front left?

    Yes. DEA MOUNTS 4713316 fits the front left of the 1997-2001 Toyota Camry. For another year or model, look in the "Vehicles it fits" section.

    Does this strut mount come with the bearing and nuts?

    Yes. DEA MOUNTS 4713316 comes with the bearing, nuts and hardware. A bolt, washer, spacer, spring seat, bumper and bellows are not included.

    Is the bearing in this strut mount pre-greased?

    Yes. The bearing is included and pre-greased, and the mount is not greaseable.

    What is the thread size of this front left strut mount?

    The thread size is M10x1.25, and the mount has three studs.

    Does DEA MOUNTS 4713316 interchange with 4860908010?

    Yes. 4860908010 is among the numbers DEA MOUNTS 4713316 replaces, along with SM5180 and 903906.
