Front Shock Absorber for 2008-2019 Kenworth T170 & More - Monroe 65128

$96.99

Vehicles this part fits

    Part number: 65128
    UPC: 048598170286
    Condition: New
    Weight: 8.90 LBS
    Item Package Quantity: 1
    $96.99
    Adding to cart… The item has been added

    Have questions?

    Monroe Shocks & Struts Suspension Shock Absorber P/N:65128
    Monroe Shocks & Struts Suspension Shock Absorber P/N:65128
    $96.99
    $96.99

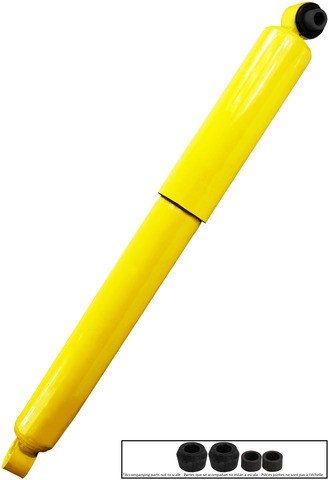

    Monroe Shocks & Struts 65128 front shock absorber for the 2008-2019 Kenworth T170 and other vehicles is a nitrogen gas-charged, large-bore shock for air spring and taper leaf suspensions on class 6-8 trucks and buses.

    • Magnum line shock built for high mileage and severe use
    • All-weather fluid with special additives for extreme temperatures helps reduce oil breakdown, and a larger 2-3/8-in. reserve tube holds more fluid (most applications)
    • 10-stage valving tuned to each vehicle adjusts to road extremes, and the larger bore gives more efficient damping control (most applications)
    • Shouldered bushing and bonded bushing with sleeve guard against bushing walkout; arc welds go up to 360°
    • PTFE-coated bearing reduces friction between rod and rod guide, and the nitrocarburized piston rod adds durability and longer service life (most applications)
    • Nitrogen gas charge keeps the tire in contact with the road by reducing aeration and shock fade

    Oil on the shock body, a dented body, cracked bushings or excess vibration can mean a shock is worn. Before you buy, look the bushings and mounts over with the engine off, because other worn suspension parts can show similar symptoms; a shop can test anything beyond that. The truck takes two, one on each side of the front axle, so order two and fit them together.

    This front shock absorber is a direct-fit replacement for the 2008-2010 Kenworth T270 and the 2008-2010 Kenworth T370 as well. If your Kenworth is not named here, enter its year and model in the "Vehicles it fits" section to see whether it is covered.

    Specifications

    Fit and size

    • Position: front
    • Quantity per vehicle: 2
    • Compressed length: 16.125 in (409.6 mm), center of loop to center of loop
    • Extended length: 25.5 in (647.7 mm), center of loop to center of loop
    • Travel length: 9.375 in
    • Bore size: 1.75 in (44.5 mm)
    • Shaft diameter: 18 mm
    • Upper mount: loop bushing and sleeve mount, 5/8 sleeve ID x 2.9/16 sleeve OAL
    • Lower mount: loop (eyelet) bushing, 3/4 bushing ID x 1.9/16 bushing OAL

    Build and materials

    • Construction: twin tube, gas charged
    • Dust shield: metal, included
    • Finish: painted, black
    • Warranty: Monroe 90-day Risk Free Ride Offer and Limited Commercial Warranty
    • Country of origin: China

    In the box

    One shock absorber with its dust shield. Mounting hardware is not included, so plan on new hardware.

    Interchange: HD12150023 · 44185031 · F347310 · 665617 · 85031 · 8160115 · 1TX665617 · B711000 · 650128 · 410044

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    HD12150023, 44185031, F347310, 665617, 85031, 8160115, 1TX665617, B711000, 650128, 65128, 410044

    Frequently Asked Questions

    Will the Monroe 65128 front shock fit a 2008-2010 Kenworth T270?

    Yes. Monroe Shocks & Struts 65128 is a front shock for the 2008-2010 Kenworth T270, and it also fits the 2008-2010 Kenworth T370 and the 2008-2019 Kenworth T170.

    Does the Monroe 65128 shock come with mounting hardware?

    No. The Monroe 65128 comes with its metal dust shield, but mounting hardware is not included, so plan on new hardware.

    What are the bore size and lengths of this Magnum shock?

    This front shock has a 1.75 in (44.5 mm) bore and an 18 mm shaft. It measures 16.125 in compressed and 25.5 in extended, center of loop to center of loop.

    How can I tell if a Magnum front shock is worn out?

    Oil on the shock body, a dented body, cracked bushings or excess vibration can point to a worn shock. A shop can confirm it.

    Is this Monroe shock gas-charged, and what mounts does it use?

    Yes. It has a nitrogen gas charge, a loop bushing and sleeve mount at the upper end and a loop (eyelet) bushing mount at the lower end.
