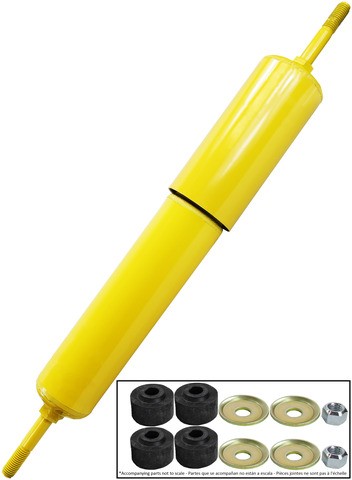

Monroe Shocks & Struts 65169 rear shock absorber for the 2006-2009 Chevrolet T6500 and other vehicles damps rear suspension movement with a nitrogen gas charge. It is built for the high mileage and severe use of class 6-8 trucks and buses.
- Monroe Magnum series: gas-charged, large-bore shock for air spring and taper leaf suspensions
- Nitrogen gas charge keeps tire-to-road contact by reducing aeration and shock fade
- 10-Stage valving tuned to each vehicle, with a 1-3/4-in. bore for damping control (most applications)
- All-weather fluid with additives for extreme temperatures and a 2-3/8-in. reserve tube (most applications)
- PTFE-coated bearing and nitrocarburized piston rod for longer service life (most applications)
- Shouldered, bonded bushing with sleeve resists walkout; arc welds up to 360° for durability
Quick facts
- Part: Monroe Shocks & Struts 65169 shock absorber
- Fits: 2006-2009 Chevrolet T6500 and other vehicles
- Position: Rear
- Condition: New
Worn rear shocks can show as fluid on the shock body, a bouncy or harsh ride, or more vibration. Leaf springs, air springs, worn bushings and tires can be behind similar ride complaints, so find the cause before buying a shock. This listing is one shock, and both rear sides are normally replaced together.
Fits
The vehicles it fits include the 2006-2009 Chevrolet T6500, the 2006-2009 Chevrolet T7500 and the 2006-2009 Chevrolet T8500, and each takes two of these rear shocks.
Specifications
Fit and size
- Position: rear
- Quantity per vehicle: 2
- Compressed length: 13.99 in (355.3 mm)
- Extended length: 23.375 in (593.7 mm)
- Travel length: 9.385 in
- Bore size: 1.75 in (44.5 mm)
- Shaft diameter: 18 mm
- Upper and lower mounts: stem mount, 5/8-11 thread pitch
Build and materials
- Construction: twin tube, gas charged
- Finish: painted
- Dust shield: metal, included
- Suspension type: passive
- Condition: new
- Warranty: Monroe limited commercial warranty
- Country of origin: China
In the box
One rear shock absorber with mounting hardware and a dust shield.
Interchange: 50722 · 50723 · HD12150158 · 15174901 · 15174903 · 88982685 · 88982687 · 9180226 · 346602
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
50722, 50723, HD12150158, 15174901, 15174903, 88982685, 88982687, 9180226, 346602, 65169
Frequently Asked Questions
Will the Monroe Magnum 65169 rear shock fit a 2006-2009 Chevrolet T7500?
Yes. Monroe Shocks & Struts 65169 is listed for the 2006-2009 Chevrolet T7500, and each truck takes two. If your truck is a different model, look it up in the "Vehicles it fits" section.
What hardware comes with the Monroe Magnum 65169 shock?
This rear shock absorber comes with mounting hardware and a dust shield.
What mount type and length does this rear shock have?
Monroe 65169 has stem mounts at both ends with a 5/8-11 thread pitch. It measures 13.99 in compressed and 23.375 in extended, with 9.385 in of travel.
Can the damping on this Magnum shock be adjusted?
No. This rear shock is passive, and adjustable compression and rebound are both listed as No. Its 10-Stage valving is tuned to each vehicle (most applications).
How can I tell if a rear shock absorber is wearing out?
A worn shock can show as fluid running down the body, a bouncy or harsh ride, or extra vibration. A shop can test a shock if you are unsure.
