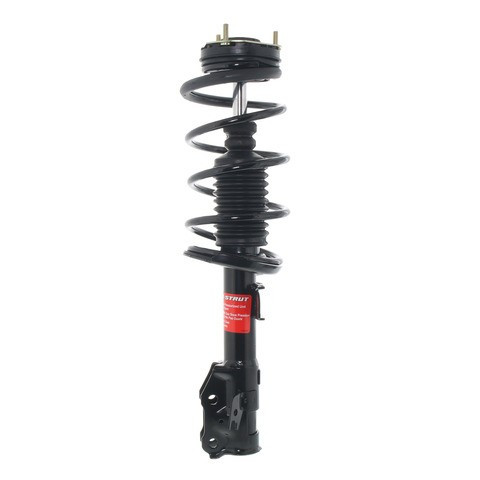

Monroe Shocks & Struts 172709 front left strut assembly for the 2011-2016 Hyundai Elantra replaces the strut, coil spring and upper mount in a single preassembled unit. This complete strut and coil spring assembly controls wheel movement over bumps at the front left corner.
- Monroe Quick-Strut line with a gas-charged strut
- Application-specific coil spring, mount and strut designs, fit checked and ride tested
- Coil spring calibrated to restore ride height and support the vehicle's weight
- Reduces body sway, vibration and road harshness before it reaches the passenger cabin
- Upper strut mount helps with steering precision and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion, and salt spray testing backs it up
Quick facts
- Part: Monroe Shocks & Struts 172709 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2011-2016 Hyundai Elantra
- Position: Front left
- Condition: New
A worn strut can show up as a bouncy ride, extra body sway or fluid on the strut body. A worn upper mount, tie rods, control arm bushings or out-of-balance tires can be behind similar signs too, so find the cause before buying.
Fits
This strut assembly fits the 2011-2016 Hyundai Elantra, which takes one on the front left. This listing is one assembly; the front right is a separate part, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Body length: 13.28 in
- Compressed length: 13.78 in (350 mm)
- Extended length: 19.17 in (486.9 mm)
- Travel length: 5.39 in
Build and materials
- Type: gas-charged, passive suspension strut assembly
- Coating: protective rust and corrosion-resistant coating
- Condition: New
- Warranty: Monroe limited lifetime warranty
- Country of origin: China
In the box
One front left strut assembly with its coil spring, strut mount, coil spring insulator and strut mount insulator. Mounting hardware is included.
Installation notes
- No spring compressor is needed.
Interchange: 2701641491 · 18818066 · LS3485701L · LS3485851L · 1333386L · 1333503L · 1333506L · 546513X040 · 546513X050 · 546513X140 · 546513X150 · 546513X151 · 546513X240 · 546513Y150 · 546513Y151 · 546613Y150 · SR4664 · SR4666 · 501727099 · 33HY1124 · NS172709 · 92140746
This part cross-references / interchanges with the following part numbers:
2701641491, 18818066, LS3485701L, LS3485851L, 1333386L, 1333503L, 1333506L, 546513X040, 546513X050, 546513X140, 546513X150, 546513X151, 546513X240, 546513Y150, 546513Y151, 546613Y150, SR4664, SR4666, 501727099, 33HY1124, 172709, NS172709, 92140746
Frequently Asked Questions
Does the Monroe 172709 strut assembly fit the 2011-2016 Hyundai Elantra?
Yes, Monroe Shocks & Struts 172709 is a front left strut assembly for the 2011-2016 Hyundai Elantra; the front right side takes its own part.
Does the Monroe 172709 come with the coil spring and upper mount?
Yes. Monroe 172709 comes with the coil spring, strut mount, coil spring insulator and strut mount insulator, plus mounting hardware.
How long is this strut assembly compressed and fully extended?
Compressed length is 13.78 in (350 mm) and extended length is 19.17 in (486.9 mm), with 5.39 in of travel and a 13.28 in body length.
Can I keep driving with oil leaking from the front left strut?
No. Fluid on the strut body, a bouncy ride or clunks over bumps can mean a strut is worn, so have the suspension checked or the strut replaced promptly.
Do I need a spring compressor to install a Quick-Strut assembly?
No. The strut, coil spring and upper mount come preassembled in one unit, so no spring compressor is needed.
