Monroe Shocks & Struts 172750 front right strut assembly for the 2014-2019 Ford Escape combines the strut, coil spring and upper mount in one preassembled unit. As a complete strut and coil spring assembly, it replaces all three parts in one step.
- Monroe Quick-Strut line with vehicle-specific coil spring, mount and strut designs
- Fully assembled unit, so no spring compressor is needed
- Coil spring calibrated to restore ride height and support the vehicle's weight
- Reduces body sway, vibration and road harshness before it reaches the cabin
- Protective coating resists rust and corrosion, and salt spray testing backs it up
Quick facts
- Part: Monroe Shocks & Struts 172750 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2014-2019 Ford Escape
- Position: Front right
- Condition: New
A clunk over bumps, extra body sway or a leaning corner can mean a strut is wearing out. These signs alone do not prove the strut is the problem, because a worn tire or a loose sway bar link can feel much the same.
Fits
This assembly fits the 2014-2019 Ford Escape. The front axle takes one on each side; this listing is the right side, and the left is a separate part that is normally replaced at the same time.
Specifications
Fit and size
- Position: front right
- Quantity per application: 1
- Compressed length: 12.36 in (313.9 mm)
- Extended length: 19.37 in (492 mm)
- Travel length: 7.01 in
- Body length: 14.484 in
Build and materials
- Type: gas charged, passive suspension
- Compression and ride height: not adjustable
- Condition: new
- Warranty: Monroe limited lifetime warranty
In the box

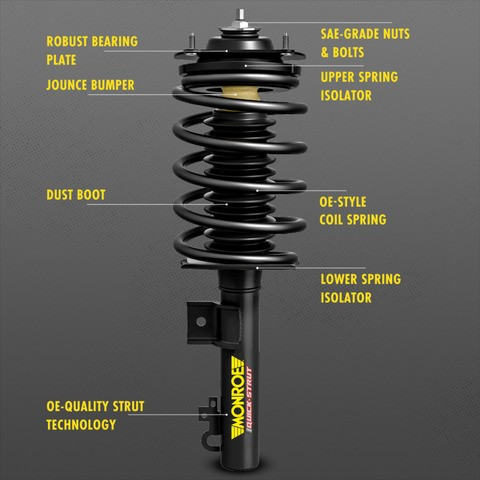

One strut assembly with the coil spring, upper strut mount, strut mount insulator, coil spring insulator and mounting hardware.
Interchange: LS5390571R · 34FD1135
Frequently Asked Questions
Is the Monroe Quick-Strut 172750 the right strut for the 2014-2019 Ford Escape?
Yes. Monroe Shocks & Struts 172750 is a front right strut assembly for the 2014-2019 Ford Escape. The front left side takes a separate part.
Does the Monroe 172750 come with the coil spring and upper mount?
Yes. Monroe 172750 arrives fully assembled with the coil spring, upper strut mount, both insulators and mounting hardware in one unit.
Is this front right strut assembly gas charged?
Yes. This strut is gas charged and passive, with no adjustable compression or ride height, and it has 7.01 in of travel.
Which noises or ride changes can come from a worn front right strut assembly?
A clunk over bumps, extra body sway and a leaning corner can be signs of wear. A shop can test the suspension if you are unsure.
Can Monroe 172750 replace a strut assembly numbered 34FD1135?
Yes. 34FD1135 is on this part's interchange list, along with LS5390571R.
