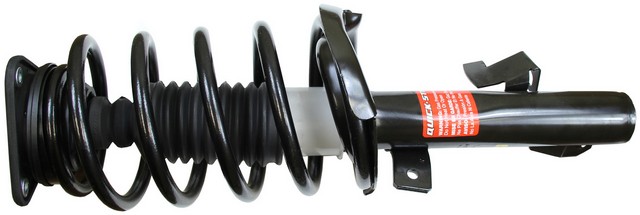

Monroe Shocks & Struts 172945 front right strut assembly for the 2012-2015 Mazda 5 joins the strut, spring and mount in one unit. It is a complete strut and coil spring assembly made for this vehicle.
- Quick-Strut series with the strut, coil spring and upper mount in a single unit
- Coil spring calibrated for its application to restore ride height and support the vehicle's weight
- Fit checked and ride tested, with spring, mount and strut designs specific to the vehicle
- Reduces body sway, vibration and road harshness before they reach the cabin
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion, and salt spray testing backs it up
Quick facts
- Part: Monroe Shocks & Struts 172945 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2012-2015 Mazda 5
- Position: Front right
- Condition: New
A bouncy ride, nose dive under braking or oil on the strut body can mean the strut is worn, though worn sway bar links or tie rod ends can be behind similar complaints, so find the cause first. The 2012-2015 Mazda 5 takes one strut on each side of the front axle. This listing is one assembly for the front right, and the front left is a separate part; both sides are normally replaced together.
Fits
This strut assembly is a direct-fit replacement for the 2012-2015 Mazda 5.
Specifications
Fit and size
- Position: Front right
- Quantity: 1 per side of the front axle
- Compressed length: 12.22 in (310.4 mm)
- Extended length: 18.91 in (480.3 mm)
- Travel length: 6.69 in
- Body length: 13.07 in
Build and materials
- Type: gas-charged strut and coil spring assembly
- Suspension: passive, with no adjustable compression or ride height
- Condition: New
- Warranty: Monroe limited lifetime warranty
- Country of origin: Viet Nam
In the box
One front right strut assembly with the coil spring, strut mount, coil spring insulators, strut mount insulators and mounting hardware.
Installation notes
- Arrives fully assembled, so no spring compressor is needed.
- The all-in-one unit includes the components required for strut replacement.
Interchange: LS3485691R · 33MZ1113
Frequently Asked Questions
Is the Monroe Shocks & Struts 172945 the right strut for a 2012-2015 Mazda 5?
Yes. Monroe Shocks & Struts 172945 is the front right strut assembly for the 2012-2015 Mazda 5. The front left side uses a separate part.
Does the 172945 strut assembly come with the coil spring and upper mount?
Yes. This strut assembly includes the coil spring, strut mount, spring and mount insulators and mounting hardware in one unit.
How long is the Monroe 172945 strut when compressed and extended?
Monroe 172945 has a compressed length of 12.22 in (310.4 mm) and an extended length of 18.91 in (480.3 mm), with 6.69 in of travel.
Can oil on the strut body mean this front right strut assembly is worn?
Yes, oil on the strut body, a bouncy ride or clunks over bumps can mean it is worn. Have it checked or replaced promptly rather than driving on it.
Do I need a spring compressor to install Monroe 172945?
No. This Quick-Strut assembly arrives fully assembled with the spring and upper mount, so no spring compressor is needed.
