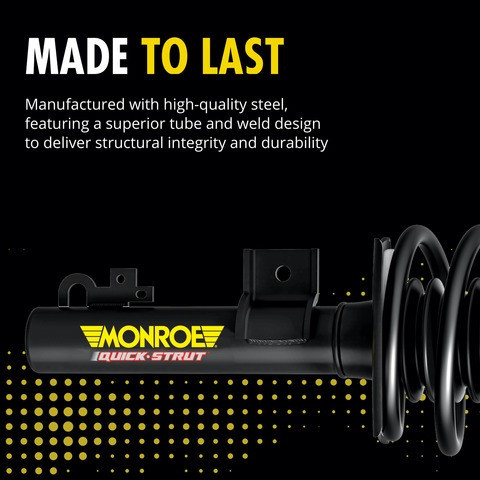

Monroe 172985 front right strut assembly for the 2015-2022 Ram ProMaster City is a Monroe quick strut with the spring and mount preassembled. Sold as a complete strut and coil spring assembly, it replaces the strut, coil spring and upper mount as one unit.
- Quick-Strut series with a vehicle-specific coil spring, mount and strut design
- Fully assembled, so no spring compressor is needed
- Coil spring calibrated to restore ride height and support the vehicle's weight
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Reduces body sway, vibration and road harshness for steadier handling
- Protective coating resists rust and corrosion, and is salt spray tested
Quick facts
- Part: Monroe 172985 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2015-2022 Ram ProMaster City
- Position: Front right
- Condition: New
A worn strut can show up as a bouncy ride, extra body lean or a knock over bumps. These signs alone do not prove the strut is the problem; a worn sway bar link can make a similar knock.
Fits
This front right strut is a direct-fit replacement for the 2015-2022 Ram ProMaster City, which takes one on this side. The front left is a separate part, and the other side of the front axle is normally done at the same time.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Compressed length: 13.73 in (348.7 mm)
- Extended length: 20.88 in (530.4 mm)
- Travel length: 7.15 in
- Body length: 13.43 in
Build and materials
- Type: gas charged, passive suspension
- Adjustment: no adjustable compression or ride height
- Condition: New
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: China
In the box
One front right strut assembly with the coil spring, upper strut mount, coil spring and strut mount insulators, and mounting hardware.
Interchange: 33DG1132
Frequently Asked Questions
Is Monroe 172985 the right strut for the front right of a 2015-2022 Ram ProMaster City?
Yes. Monroe 172985 is the front right strut assembly for the 2015-2022 Ram ProMaster City; the front left side is a separate part.
What comes with this Monroe complete strut assembly besides the strut itself?
The coil spring, upper strut mount, their insulators and mounting hardware are included, with the spring and mount preassembled on the strut.
Is the Monroe suspension strut and coil spring assembly 172985 gas charged?
Yes. Monroe 172985 is gas charged and passive, with no adjustable compression or ride height.
What can a worn front right strut feel like before I order a Monroe strut assembly?
Signs can include a bouncy ride, uneven tire wear or oil seeping from the strut body, which you can see with the vehicle parked.
Do I need a spring compressor to install the Monroe quick strut assembly 172985?
No. Monroe 172985 arrives fully assembled with the spring and upper mount, so no spring compressor is needed.
