Monroe 173124 front strut assembly for the 2021-2025 Ford F-150 supports the vehicle's weight and controls spring movement. This Monroe quick strut is a vehicle-specific, all-in-one unit.
- Monroe Quick-Strut line with a vehicle-specific design that is ride tested
- Coil spring and upper mount come preassembled on the strut, so no spring compressor is needed
- Coil spring is engineered to restore ride height and support the vehicle's weight
- Reduces body sway, vibration and road harshness for improved handling

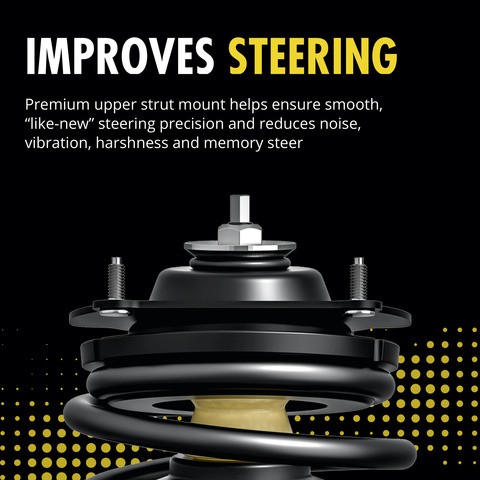

- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion and is salt spray tested
Quick facts
- Part: Monroe 173124 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2021-2025 Ford F-150
- Position: Front
- Condition: New
A worn strut can show up as a bouncy ride, nose dive when braking or uneven tire wear. Tires, wheel bearings, ball joints, control arm bushings and sway bar links can be behind similar noises or handling changes too, so find the cause before buying a strut. If a worn strut is the cause, this Monroe quick strut assembly replaces the strut, spring and upper mount together.
Fits
This strut assembly fits the 2021-2025 Ford F-150, which takes two, one for each front wheel. This listing is one strut assembly; the other front side is normally done at the same time.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Body length: 16.59 in
- Compressed length: 16.79 in (426.5 mm)
- Extended length: 21.89 in (556 mm)
- Travel length: 4.95 in
Build and materials
- Type: gas charged, passive suspension
- Adjustable compression: No
- Adjustable ride height: No
- Finish: protective rust-resistant coating
- Condition: New
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: China
In the box
One strut assembly with the coil spring, upper strut mount, coil spring insulator, strut mount insulator and mounting hardware.
Interchange: ML3Z18124P · ML3Z18124Q · ML3Z18124R · ML3Z18124T · G57683
This part cross-references / interchanges with the following part numbers:
ML3Z18124P, ML3Z18124Q, ML3Z18124R, ML3Z18124T, G57683, 173124
Frequently Asked Questions
Does this Monroe strut assembly fit the 2021-2025 Ford F-150?
Yes. Monroe 173124 is a front strut assembly for the 2021-2025 Ford F-150, and the vehicle takes two, one for each front wheel.
What does this complete strut and coil spring assembly include besides the strut?
This front strut assembly also includes the coil spring, upper strut mount, both insulators and mounting hardware, already assembled.
What are the compressed and extended lengths of this Monroe quick strut strut and coil spring assembly?
Monroe 173124 measures 16.79 in (426.5 mm) compressed and 21.89 in (556 mm) extended, with 4.95 in of travel.
How can I tell a Monroe complete strut assembly is worn out?
Fluid on the strut body, a clunk over bumps or a sagging corner can mean wear. A shop can inspect the front end and road-test it.
Can I adjust the ride height or compression on this Monroe quick strut assembly?
No. Monroe 173124 is a passive, gas-charged strut assembly with no adjustable compression and no adjustable ride height.
