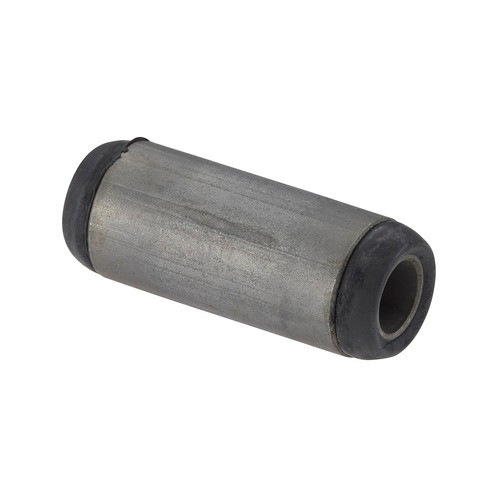

Take the rattle and slop out of the rear leaf-spring suspension with the MOOG Leaf Spring Bushing / Leaf Spring Shackle Bushing (SB253). This rear-position bushing seats at the leaf spring eye or shackle, giving the spring a controlled pivot point while cushioning road shock and limiting the metal-to-metal contact that leads to clunks and rattles. It installs as a direct-fit replacement for a range of classic trucks and vans, including the 1965-1966 and 1971-1972 Chevrolet C10 Pickup, 1965-1966 and 1971-1972 Chevrolet C20 Pickup, 1971-1972 Chevrolet G10 Van, 1965-1971 Ford F-100, 1965-1966 Ford F-250, 1971-1972 GMC C15/C1500 Pickup, 1971-1972 GMC C25/C2500 Pickup, and 1971-1972 GMC G15/G1500 Van [All engines]. See the Buyer's Guide tab for the full list. This part is listed under both "Leaf Spring Bushing" and "Leaf Spring Shackle Bushing."
MOOG has earned its Problem Solver reputation by continually refining designs that extend service life and make installation and replacement easier.
- Premium grade: a premium-grade Problem Solver replacement.
- Easy to install: designed for a straightforward fit at the spring eye or shackle.
- Built for long life: engineered for long life and dependability, with construction and design validated by MOOG engineers; designed to help restore like-new steering and handling when worn bushings are the cause.
- Mounting hardware not included: consult the vehicle service information for the correct fasteners and whether they may be reused.
Signs the original bushings may need replacing include clunking or knocking over bumps, excessive spring movement, and a loose, wandering rear end. Sold individually (one bushing per package); the quantity needed varies by application, and some listed vehicles use two, so check the Buyer's Guide for your vehicle. Country of origin: India.
Interchange: 45G15325 · 45G15336 · 602.66063 · 60266063 · 532-910 · 532910 · CB6459 · SK6459 · B7C-5781A · B7C5781A · 2447253 · SK6513 · MS504201 · MS504203 · 274-6459 · 2746459 · 2746513 · 5763325 · 5763336 · B253. Manufacturer part number SB253.
This part cross-references / interchanges with the following part numbers:
45G15325, 45G15336, 602.66063, 532-910, CB6459, SK6459, B7C-5781A, 2447253, SK6513, MS504201, MS504203, 274-6459, 2746513, 5763325, 5763336, B253
