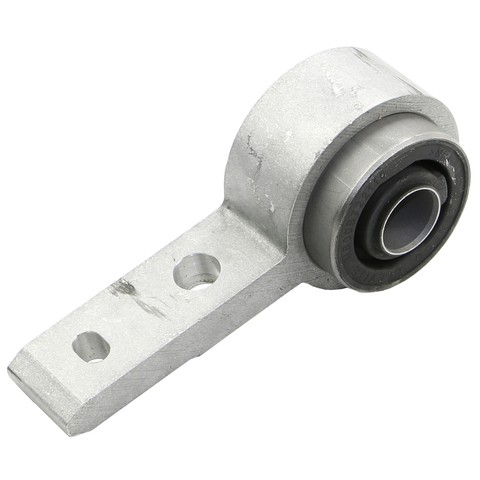

MOOG Chassis Products K201331 front left lower inner control arm bushing for the 2009-2013 Mazda 6 cushions the pivot where the control arm attaches. Its design is engineered to match or exceed OE requirements.
- Comprehensive testing by MOOG engineers throughout design and development
- Engineered for quiet operation and resistance to wear, salt, road grime and oils
- Elastomer compounds chosen for durability and ride performance
Quick facts
- Part: MOOG Chassis Products K201331 control arm bushing
- Also called: suspension control arm bushing
- Fits: 2009-2013 Mazda 6
- Position: front left lower rearward inner
- Material: elastomer compounds
- Condition: New
A worn bushing can show up as a clunk or knock over bumps, a loose or wandering steering feel, or uneven tire wear. Other worn suspension parts can produce those signs too, so look the tires over for uneven wear with the car parked, and have a shop inspect the arm and its bushings before you replace anything.
Fits
This control arm bushing fits the 2009-2013 Mazda 6. The listing is one bushing for the front left, and the 2009-2013 Mazda 6 takes one on that side; the front right is ordered separately, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: front left lower rearward inner
- Inside diameter: 1.141 in
- Outside diameter: 2.921 in
Build and materials
- Material: elastomer compounds
- Condition: New
- Country of origin: Turkey
Interchange: GS3L34300B · GS3L34350B · MS76431 · 2673872
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
GS3L34300B, GS3L34350B, MS76431, 2673872
Frequently Asked Questions
Is the K201331 the right control arm bushing for the 2009-2013 Mazda 6?
Yes. MOOG Chassis Products K201331 is made for the 2009-2013 Mazda 6 in the front left lower rearward inner position.
What are the inside and outside diameters of the MOOG K201331 bushing?
The MOOG K201331 has an inside diameter of 1.141 in and an outside diameter of 2.921 in.
Does this suspension control arm bushing go on the left or right side?
Left. This bushing is for the front left lower rearward inner position, and the right side is a separate part ordered on its own.
How do I know if the front left lower control arm bushing is worn?
A shop can inspect it with the vehicle raised, looking for cracked, torn or separated rubber and for play at the arm.
Does the MOOG K201331 interchange with MS76431?
Yes. MS76431 is one of the numbers this part replaces, along with GS3L34300B, GS3L34350B and 2673872.
