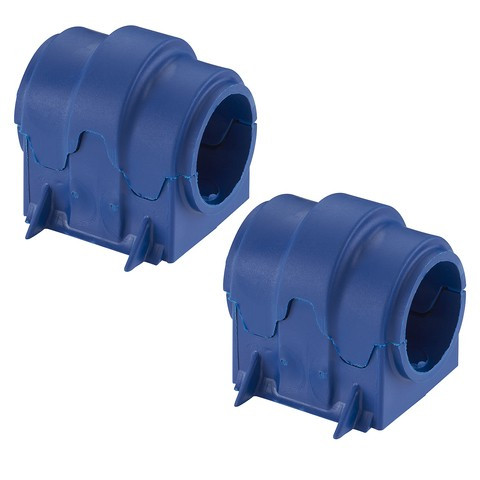

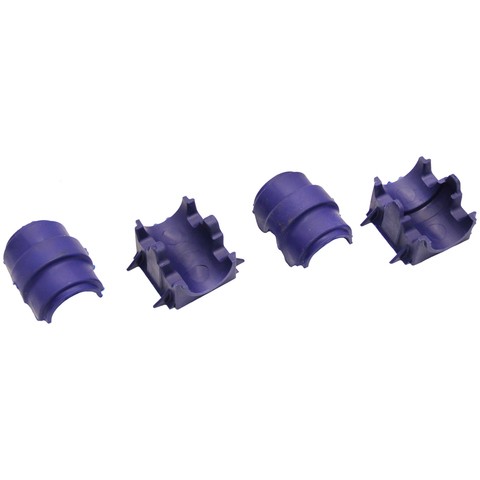

MOOG Chassis K200520 front sway bar bushing kit for the 2006-2012 Ford Explorer and other vehicles holds the sway bar to the frame while letting it twist. Some shops call it a stabilizer bar bushing kit.
- MOOG Problem Solver line, aimed at faster installation
- Tested by MOOG engineers throughout design and development
- Less prone to splitting, discoloring or cracking with age
- Optimized for quiet operation and resistance to wear, salt, road grime and oils
Quick facts
- Part: MOOG Chassis K200520 sway bar bushing kit
- Also called: stabilizer bar bushing kit
- Fits: 2006-2012 Ford Explorer and other vehicles
- Position: Front to frame
- Condition: New
Worn sway bar bushings can show up as a rattle or clunk over bumps, or as cracks and splits in the bushing. Those noises can come from end links or other suspension parts too, so find the source first. Once a bushing is out, compare its inside diameter with the 1.260 in listed below.
Fits
The 2006-2012 Ford Explorer, the 2010-2012 Ford Flex and the 2010-2012 Lincoln MKT all take this kit, along with more models. If your car is not named here, look it up by make, model and year in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: front to frame
- Quantity per vehicle: 1
- Bar diameter: 1.260 in
- Inside diameter: 1.260 in
- Outside diameter: 2.130 in
Build and materials
- Condition: New
- Country of origin: United States
In the box
One sway bar bushing kit; each vehicle takes one. Mounting hardware is not included, so plan on new bolts or fasteners, since the old ones may not be reusable.
Interchange: 602.65014 · 535-530 · 550-1763
45G1750 · TD4202W · BSK85149PR · FB200520 · HB200520 · 6L2Z5484AA · 8L2Z5484A · AA8Z5484A · AA8Z5484B · BSK85149 · MS40874 · 2652838 · JBU1320
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Is the MOOG K200520 bushing kit right for the 2010-2012 Ford Flex?
Yes. MOOG Chassis K200520 is listed for the 2010-2012 Ford Flex, and the vehicle takes one kit.
Do the MOOG K200520 sway bar bushings come with bolts?
No. This listing is one bushing kit without mounting hardware, so plan on new bolts or fasteners for the job.
What bar diameter does the MOOG Chassis K200520 bushing kit suit?
MOOG Chassis K200520 has a 1.260 in bar diameter and a 1.260 in inside diameter, with a 2.130 in outside diameter.
How can I tell if my front sway bar bushings are worn?
Cracks or splits in the bushing, or a clunk or rattle over bumps, can mean worn bushings. A shop can inspect them safely on a lift.
Are these MOOG sway bar bushings built to handle road salt and oils?
Yes. The bushings resist wear, salt, road grime and oils, and are made for quiet operation.
