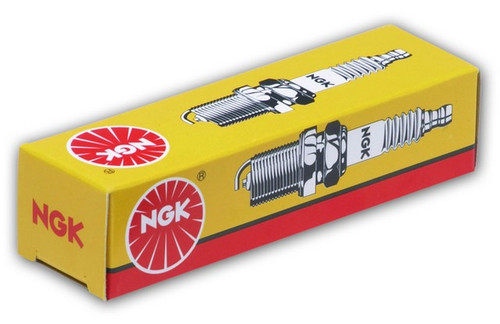

NGK 3785 spark plug for the 1978-1979 Honda Civic 1.5L and other vehicles ignites the air-fuel mixture in the cylinder. It comes from the NGK Standard line, the yellow-box NGK spark plugs engineered for OE applications.
- OE quality nickel alloy center electrode for consistent performance
- Trivalent metal plating resists corrosion and seizing, which eases installation and removal
- High grade alumina silicate ceramic insulator for stronger dielectric performance
- Solid 98% pure copper core for heat dissipation, conductivity and ultra wide heat ranges
- Cold-rolled threads that help prevent cross-threading and cylinder head damage
- Best for vehicles with OE nickel alloy plugs; not recommended where the factory plugs are precious metal
A worn plug can show up as hard starting, a rough idle or a misfire. Those signs alone do not prove the plug is at fault, since a tired ignition wire or a fuel problem can cause them too.
The 1978-1979 Honda Civic 1.5L takes four plugs, and the 1997 Polaris SL 700 Deluxe 700cc and 1996 Polaris Hurricane 700cc take two each. This plug fits other vehicles beyond these as well.
Specifications
Fit and size
- Quantity per vehicle: varies by vehicle
- Thread size: M14 - 1.25 (metric)
- Reach: 0.750 in (19.0 mm)
- Seat type: flat
- Heat range: 7
- Insulator height: 2.13 in (54.0 mm)
- Pre-gap: .032 in (0.8 mm)
- Center electrode insulator tip projection: 0.12 in (3.0 mm), mid projection
Build and materials
- Grade: standard replacement
- Resistor type: yes, 5000 ohms
- Insulator material: ceramic
- Center electrode core: copper
- Center electrode tip: nickel
- Ground electrode: nickel, J-gap, 1 electrode
- Terminal: non-removable nut
- Country of origin: Japan
In the box
The plug comes with a crush washer.
Interchange: BPR7ES SOLID · 4238 · WR5DP · 339 · RN6YC · 3070173
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Is the NGK 3785 the right spark plug for a 1978-1979 Honda Civic 1.5L?
Yes, the NGK 3785 fits the 1978-1979 Honda Civic 1.5L, four plugs per engine. If your car is a different model, look it up in the "Vehicles it fits" section to see whether this plug is listed for it.
Is the NGK 3785 a Hurricane spark plug for the 1996 Polaris Hurricane 700cc?
Yes, this plug fits the 1996 Polaris Hurricane 700cc, which takes two plugs.
Is the NGK 3785 a resistor type, like NGK R spark plugs?
Yes, the NGK 3785 is a resistor-type spark plug with 5000 ohms of resistance.
What thread size and reach does this spark plug have?
It has an M14 - 1.25 metric thread and a 0.750 in (19.0 mm) reach. The seat is flat with a crush washer, and the plug is pre-gapped to .032 in (0.8 mm).
Is this plug OK on a car that has factory precious metal plugs?
No, it is not recommended there. This nickel alloy plug suits vehicles that came with OE nickel alloy plugs.
