Spark Plug for 1980-1996 Ford F-150 & More - NGK UR5IX

$11.99
Sold out

Vehicles this part fits

    Part number: UR5IX
    UPC: 087295171776
    Condition: New
    Weight: 0.08 LBS
    Item Package Quantity: 1
    $11.99

    Out of stock

    Have questions?

    NGK Spark Plug P/N:UR5IX
    NGK Spark Plug P/N:UR5IX
    $11.99
    $11.99

    NGK UR5IX spark plug for the 1980-1985 Ford F-150 V8 5.0L, the 1984-1996 F-150 V8 5.8L and other vehicles ignites the air-fuel mixture in the cylinder with a fine-wire iridium tip. It is one of the NGK spark plugs recommended for modified or high-performance applications, or as an upgrade to OE nickel alloy spark plugs.

    • NGK Iridium IX spark plug line, designed for the performance enthusiast
    • Fine wire 0.6 millimeter iridium tip center electrode for durability and a consistently stable spark
    • Iridium alloy center electrode, with a density 6x that of platinum and an extremely high melting point

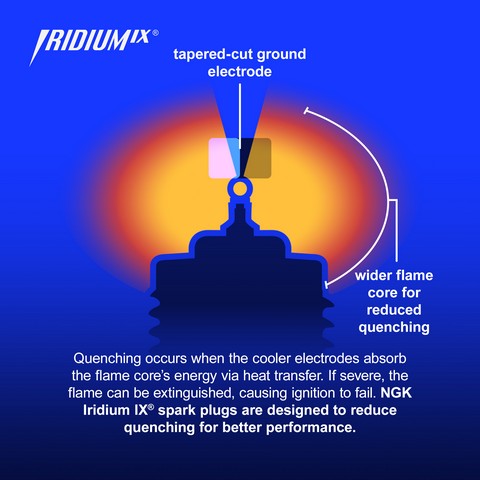

    • Tapered cut ground electrode with a reduced quenching design for ignitability, acceleration and fuel efficiency
    • Solid copper core, 98% pure copper, for heat dissipation, conductivity and ultra wide heat ranges
    • Trivalent metal plating for anti-corrosion and anti-seizing, which eases installation and removal

    Quick facts

    • Part: NGK UR5IX spark plug
    • Fits: 1980-1985 Ford F-150 V8 5.0L, the 1984-1996 F-150 V8 5.8L and other vehicles
    • Condition: New

    A worn plug can show up as hard starting, a rough idle or a misfire. Before you replace the plugs, rule out a bad plug wire or a fuel delivery problem that could be behind the misfire.

    Fits

    The 1988-1995 Chevrolet C1500 V6 4.3L, V8 5.0L or 5.7L, the 1990-1993 C1500 V8 7.4L and the 1988-1995 Chevrolet K1500 V6 4.3L, V8 5.0L or 5.7L fit this plug, as do the vehicles named above and many more. The V8 engines take eight plugs and the V6 4.3L takes six. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Thread size: M14 - 1.25 (14 mm)
    • Reach: 0.460 in (11.2 mm)
    • Seat: tapered
    • Projection: mid projection
    • Quantity per vehicle: 6 or 8, depending on engine

    Build and materials

    • Metallurgy: single iridium
    • Center electrode: fine wire, 0.6 millimeter iridium tip
    • Ground electrode: tapered cut
    • Core: solid copper, 98% pure copper
    • Plating: trivalent metal
    • Resistor: yes
    • Condition: New
    • NGK stock number: 7177

    Interchange: 7177

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    7177

    Frequently Asked Questions

    Is this the right Ford F-150 spark plug for a 1984-1996 Ford F-150 V8 5.8L?

    Yes, NGK UR5IX fits the 1984-1996 Ford F-150 V8 5.8L, and it also fits the 1980-1985 F-150 V8 5.0L. Each of those V8 engines takes eight plugs.

    Are these K1500 spark plugs for the 1988-1995 Chevrolet K1500 V6 4.3L, V8 5.0L or 5.7L?

    Yes, NGK UR5IX fits the 1988-1995 Chevrolet K1500 V6 4.3L, V8 5.0L and V8 5.7L. The V6 takes six plugs and each V8 takes eight; open the "Vehicles it fits" section for other models.

    How durable is the center electrode on these NGK iridium spark plugs?

    The center electrode is a 0.6 millimeter iridium tip, and iridium is six times harder than platinum. The alloy also has an extremely high melting point.

    Is NGK stock number 7177 the same plug as the UR5IX?

    Yes, NGK lists this spark plug under both UR5IX and stock number 7177, so either number finds the same plug.

    What thread size and reach does the UR5IX have?

    The thread is M14 - 1.25 (14 mm), with a 0.460 in reach and a tapered seat. It is a resistor plug.
