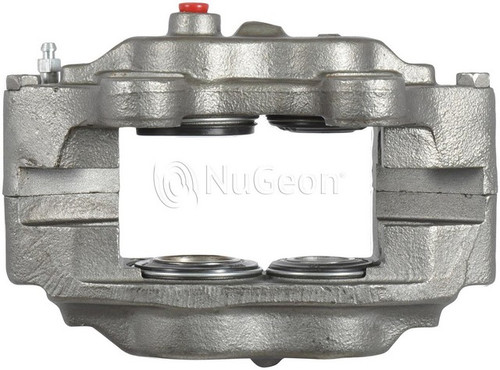

Put a fresh remanufactured caliper to work at the front right wheel with the Nugeon brake caliper 97-01513A. It is a direct-fit replacement for the listed applications: the 1976-1990 Toyota Land Cruiser, the 1986-1989 Toyota 4Runner and the 1986-1988 Toyota Pickup.
A disc brake caliper uses hydraulic pressure from the brake pedal to press the pads against the rotor. This Nugeon caliper is a fixed design, so the body stays in place while its pistons push the pads from both sides of the rotor.
A caliper may need replacing if the vehicle pulls to one side under braking, brake fluid leaks at the caliper, a brake drags or sticks, or the pads wear unevenly. Diagnose the cause first. If the caliper is at fault, this unit replaces it. Each package holds one caliper for the front right position, and the listed applications use one. After installation, bleed the brake system according to the vehicle's service information. Country of origin: Mexico.
Which vehicles does this caliper fit?
It is listed for the 1976-1990 Toyota Land Cruiser, 1986-1989 Toyota 4Runner and 1986-1988 Toyota Pickup. See the Buyer's Guide tab for full fitment details.
Is this listing for both calipers on the front axle?
No. This is a single remanufactured caliper for the front right position, and the listed applications use one.
Are brake pads or a bracket included?
No. Pads, the bracket, mounting bolts, slides, shims and caliper and pad hardware are not included. The caliper comes with a bleeder screw and dust boots.
What piston setup does this caliper use?
It is a fixed caliper with four steel pistons in two sizes, 34 mm (1.339 in) and 43 mm (1.693 in), in a cast iron casting.
What thread size is the brake line inlet?
The inlet is a tube-seat fitting with an M10-1.0 thread. The included bleeder screw is also M10-1.0.
