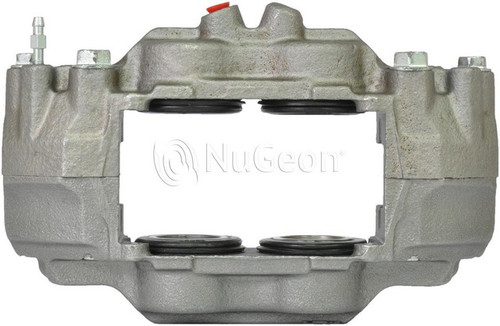

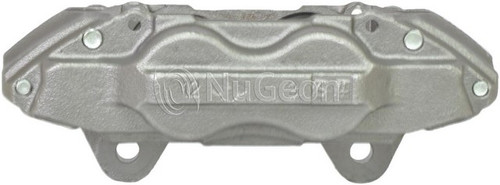

Nugeon 97-01645B front left brake caliper for the 2005-2023 Toyota Tacoma and other vehicles clamps the brake pads against the rotor to slow the wheel. This Nugeon brake caliper is remanufactured, and shops also call it a disc brake caliper.
- Fixed caliper with four steel pistons
- Cast iron housing with a rust-preventative finish
- Bleeder screw, caliper slides and dust boots included
- Caliper and pad hardware and crush washers included
- Tube seat inlet fitting with an M10-1.0 thread
Quick facts
- Part: Nugeon 97-01645B brake caliper
- Also called: disc brake caliper
- Fits: 2005-2023 Toyota Tacoma and other vehicles
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
Fluid around the wheel, a pull to one side under braking or uneven pad wear can mean a caliper is failing. Before you replace this one, rule out worn pads, a damaged brake hose and a rotor problem, since each can cause similar symptoms. Front calipers on the 2005-2023 Toyota Tacoma are normally swapped as a left and right pair, but this listing is a single caliper for the front left; the front right is a separate part.
Fits
This brake caliper fits the 2005-2023 Toyota Tacoma, the 2003-2009 Toyota 4Runner and the 2007-2014 Toyota FJ Cruiser, in the front left position.
Specifications
Fit and size
- Position: front left
- Quantity per vehicle: 1 for this side
- Piston outside diameter: 45.31 mm (1.78 in)
- Inlet fitting: tube seat, M10-1.0 thread
- Bleeder thread size: M7-1.0
- Housing cast number: 13WG
Build and materials
- Caliper type: fixed, 4 pistons
- Piston material: steel
- Casting material: cast iron
- Finish: rust preventative
- Condition: remanufactured
- Country of origin: Mexico
In the box
One remanufactured front left brake caliper with its bleeder screw, caliper slides, dust boots, caliper and pad hardware, mounting hardware and crush washers. This listing holds one caliper, and the front left takes one. Pads, bracket, bracket mounting bolts, mounting bolt, anti-squeal shims, wear sensors and bleeder screw cap are not included, so plan on new bolts.
Frequently Asked Questions
Is this a Toyota Tacoma caliper for the 2005-2023 model years?
Yes. Nugeon 97-01645B is a front left caliper that fits the 2005-2023 Toyota Tacoma. The front right side is a separate part.
Is this a brake caliper for the 2007-2014 Toyota FJ Cruiser?
Yes. Nugeon 97-01645B fits the 2007-2014 Toyota FJ Cruiser, and this listing covers the front left position only.
What comes with this Nugeon caliper?
This caliper comes with a bleeder screw, caliper slides, dust boots, caliper and pad hardware, mounting hardware and crush washers. Pads, bracket and mounting bolts are not included.
Does this front left caliper have a fixed or floating design?
This front left caliper is a fixed type with four steel pistons. The piston outside diameter is 45.31 mm (1.78 in).
How can I tell if a front brake caliper is going bad?
Brake fluid around the wheel, a pull to one side when braking or a burning smell after driving can mean a failing caliper. Have the brakes inspected promptly; a shop can test it.
