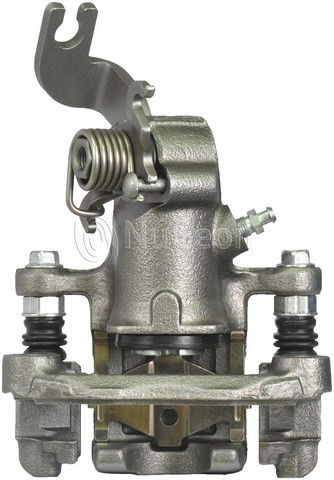

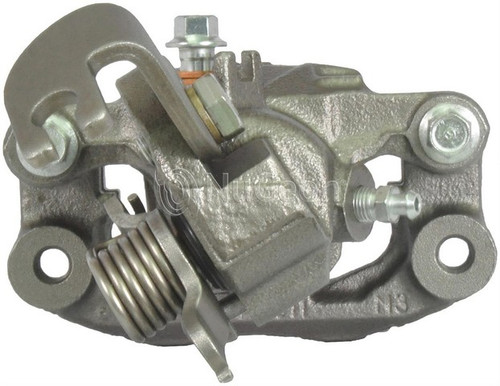

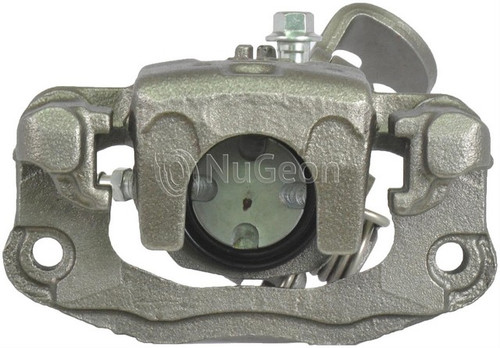

Nugeon 99-00822B rear right brake caliper for the 2004-2005 Hyundai Elantra and other vehicles presses the pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper bolts on at the rear right wheel.
- Floating caliper type with one steel piston, 34 mm across
- Cast iron casting with a rust preventative finish
- Banjo inlet fitting with an M10-1.0 x 23.4 mm port thread
- Bleeder screw thread of M10-1.0
Quick facts
- Part: Nugeon 99-00822B brake caliper
- Also called: disc brake caliper
- Fits: 2004-2005 Hyundai Elantra and other vehicles
- Position: Rear right
- Material: Cast iron (casting), steel (piston)
- Condition: Remanufactured
A failing rear caliper can show up as a pull to one side, uneven pad wear or fluid around the caliper or its dust boot. Before you replace it, rule out worn pads, a bad brake hose and a rotor problem, which can give similar signs. Rear calipers are normally replaced as a pair, so plan on the rear left too; this listing is one caliper for the rear right, and the car takes one on each side of the axle.
Fits
This brake caliper for the 2004-2005 Hyundai Elantra also fits the 2004 Hyundai Tiburon.
Specifications
Fit and size
- Position: rear right
- Quantity per application: 1
- Piston quantity: 1
- Piston diameter: 34 mm (1.339 in); outside diameter 33.86 mm (1.33 in)
- Bleeder screw thread: M10-1.0
- Inlet fitting: banjo, M10-1.0 x 23.4 mm port thread
- Banjo bolt quantity: 1
Build and materials
- Caliper type: floating
- Condition: remanufactured
- Casting material: cast iron
- Piston material: steel
- Finish: rust preventative
- Housing cast numbers: BC141018, R
- Country of origin: Mexico
In the box
One brake caliper with its bracket, caliper slides, dust boots, bleeder screw, crush washers and caliper and pad hardware. Brake pads, bracket mounting bolts, anti-squeal shims, wear sensors and a bleeder screw cap are not included, so plan on new mounting bolts.
Frequently Asked Questions
Is Nugeon 99-00822B a 2004-2005 Hyundai Elantra brake caliper replacement?
Yes. Nugeon 99-00822B is a remanufactured caliper for the rear right position on the 2004-2005 Hyundai Elantra. The rear left caliper is a separate part.
Is this a 2004 Hyundai Tiburon brake caliper for the rear right side?
Yes. This listing is the rear right caliper for the 2004 Hyundai Tiburon, and the rear left caliper is ordered separately.
Does this disc brake caliper come with its bracket?
Yes. Nugeon 99-00822B includes the bracket, caliper slides, dust boots, bleeder screw, crush washers and caliper and pad hardware. Pads, bracket mounting bolts, shims and wear sensors are not included.
Which piston size does the Nugeon caliper have?
The Nugeon caliper has one steel piston, 34 mm (1.339 in) across, in a floating caliper design.
What bleeder screw thread does this rear right caliper use?
The bleeder screw is M10-1.0 and is included with the caliper. The bleeder screw cap is not included.
