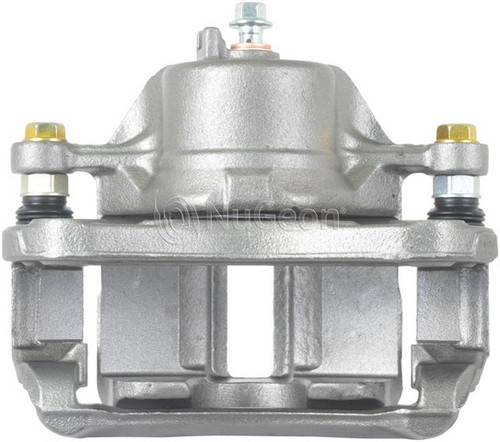

Front Left Brake Caliper for 2005-2006 Hyundai Elantra - Nugeon 99-00832A
Nugeon 99-00832A front left brake caliper for the 2005-2006 Hyundai Elantra clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper has a floating design.
- Single steel piston, 54 mm in diameter
- Cast iron housing with a rust-preventative finish
- Banjo inlet fitting with an M10-1.0 x 23.4 mm port thread
- Bleeder screw with an M10-1.0 thread
Quick facts
- Part: Nugeon 99-00832A brake caliper
- Also called: disc brake caliper
- Fits: 2005-2006 Hyundai Elantra
- Position: Front left
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
A disc brake caliper that sticks or leaks can show up as the car pulling to one side, uneven pad wear or fluid around the wheel. Worn pads or a brake hose problem could produce a similar pull, so during a brake service, with the engine off and the brakes cool, look at the caliper boot and piston for fluid and at the pads for uneven wear before replacing it.
Fits
This listing is a brake caliper for the 2005-2006 Hyundai Elantra. It is one caliper for the front left; the 2005-2006 Hyundai Elantra takes one on this side, the front right is ordered separately, and the two are normally replaced together.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1 on this side
- Piston diameter: 54 mm (2.126 in)
- Piston outside diameter: 53.87 mm (2.12 in)
- Piston quantity: 1
- Inlet port thread: M10-1.0 x 23.4 mm, banjo fitting
- Bleeder screw thread: M10-1.0
- Housing cast number: BC141069; bracket cast number: 560
Build and materials
- Caliper type: Floating
- Condition: Remanufactured
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Country of origin: Mexico
In the box
One brake caliper with its bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, the bracket mounting bolts and the mounting bolt are not included; plan on new bolts rather than reusing the old ones.
Frequently Asked Questions
Is this the right brake caliper replacement for the 2005-2006 Hyundai Elantra?
Yes. Nugeon 99-00832A is the front left caliper for the 2005-2006 Hyundai Elantra. The front right side needs its own caliper.
What comes with this Nugeon caliper besides the caliper body?
The bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw and crush washers are included. Brake pads, anti-squeal shims and wear sensors are not.
Which brake line fitting does the 99-00832A caliper use?
Nugeon 99-00832A has a banjo inlet fitting with an M10-1.0 x 23.4 mm port thread. Crush washers come with it.
How can I tell if a floating brake caliper is sticking?
A sticking caliper can show as the car pulling to one side or uneven pad wear on that wheel. A shop can confirm it with a brake inspection.
What is the piston size on this remanufactured brake caliper?
This front left brake caliper has one steel piston, 54 mm (2.126 in) in diameter, in a floating design with a cast iron housing.
