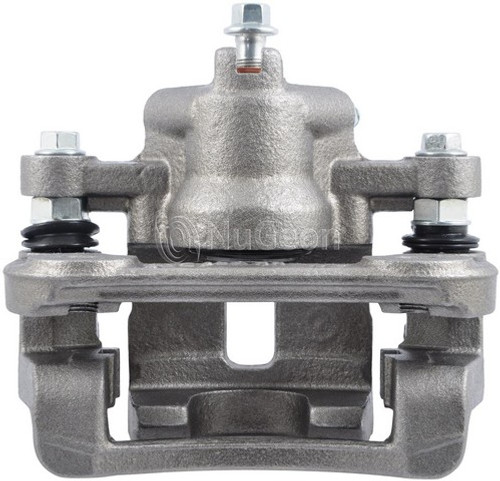

Nugeon 99-00848B rear left brake caliper for the 2009-2012 Hyundai Elantra clamps the brake pad against the rotor to slow the wheel. This remanufactured Nugeon brake caliper, also called a disc brake caliper, is a floating type.
- Single steel piston, 31 mm (1.22 in) in diameter
- Cast iron caliper casting with a rust-preventative finish
- Banjo bolt inlet fitting with an M10-1.0 x 23.4 inlet port thread
Quick facts
- Part: Nugeon 99-00848B brake caliper
- Also called: disc brake caliper
- Fits: 2009-2012 Hyundai Elantra
- Position: Rear left
- Material: Cast iron casting, steel piston
- Condition: Remanufactured
A sticking or leaking caliper can bring on pulling to one side under braking, uneven pad wear or fluid near the dust boot. Before you replace it, rule out worn pads, stuck slides and a damaged brake hose, which can produce similar symptoms. Replace the rear calipers as a pair; this listing is one rear left caliper, the axle takes one per side, and the right side is ordered separately.
Fits
This is a direct-fit brake caliper for the 2009-2012 Hyundai Elantra, made for the rear left position.
Specifications
Fit and size
- Position: rear left
- Quantity per application: 1
- Piston diameter: 31 mm (1.22 in)
- Piston quantity: 1
- Inlet fitting: banjo bolt, port thread M10-1.0 x 23.4
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: floating
- Casting material: cast iron
- Piston material: steel
- Finish: rust preventative
- Condition: remanufactured
- Country of origin: Mexico
In the box
One remanufactured caliper with its bracket, slides, dust boots, bleeder screw and crush washer. Pads, anti-squeal shims, pad hardware, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included, so plan on new bolts.
Frequently Asked Questions
Is this Nugeon 99-00848B the right brake caliper replacement for the 2009-2012 Hyundai Elantra?
Yes. Nugeon 99-00848B is the rear left caliper for the 2009-2012 Hyundai Elantra. The rear right side is a separate part.
Does this Nugeon caliper come with brake pads and mounting bolts?
No. Pads, anti-squeal shims, pad hardware, wear sensors and bracket mounting bolts are not included. The caliper comes with its bracket, slides, dust boots, bleeder screw and crush washer.
Which inlet and bleeder thread sizes does this caliper use?
Nugeon 99-00848B has a banjo bolt inlet with an M10-1.0 x 23.4 port thread. The bleeder screw thread is M10-1.0.
How can I tell if a rear brake caliper is leaking or sticking?
Brake fluid around the dust boot, uneven pad wear and the car pulling to one side under braking can all point to a caliper problem. A shop can test the hydraulics.
Is this a floating or fixed caliper, and how many pistons does it have?
This rear caliper is a floating design with one 31 mm (1.22 in) steel piston, in a cast iron body with a rust-preventative finish.
