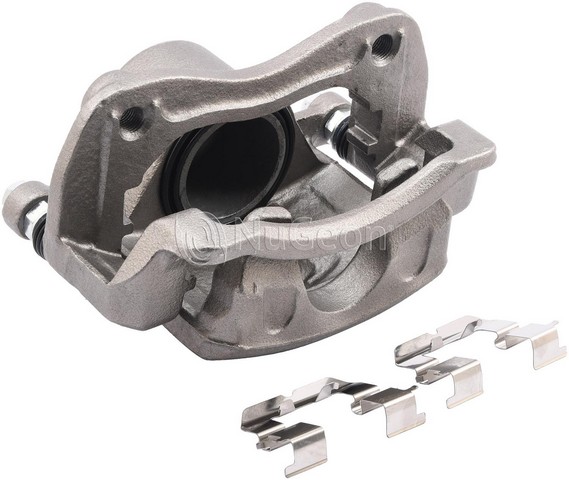

Nugeon 99-00858A front brake caliper for the 2011-2016 Hyundai Elantra and other vehicles clamps the brake pads against the rotor to slow the wheel. It is a remanufactured disc brake caliper.
- Floating caliper design with a single 57 mm steel piston
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet with an M10-1.0 x 23.4 port thread
- Bleeder screw with cap, plus crush washers, included
- Bracket, caliper slides, dust boots and caliper and pad hardware included
Quick facts
- Part: Nugeon 99-00858A brake caliper
- Also called: disc brake caliper
- Fits: 2011-2016 Hyundai Elantra and other vehicles
- Position: Front right, front left
- Material: Cast iron
- Condition: Remanufactured
A sticking caliper can show up as the car pulling to one side under braking, uneven pad wear or brake fluid around the dust boot. Worn pads or a tire problem can pull a car as well, so look before you replace the caliper. When the wheels are off for a brake service, with the engine off, check the boot for fluid and compare the wear on both pads.
Fits
This brake caliper is a direct-fit replacement for the 2011-2016 Hyundai Elantra and the 2013-2014 Hyundai Elantra Coupe, on the front left or front right.
Specifications
Fit and size
- Position: front right, front left
- Quantity per application: 1
- Piston diameter: 57 mm (2.24 in)
- Piston quantity: 1
- Inlet fitting: banjo bolt, M10-1.0 x 23.4 port thread
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: floating
- Housing material: cast iron
- Piston material: steel
- Finish: rust preventative
- Housing cast number: BC140189; bracket cast number: BC412190
- Condition: remanufactured
- Country of origin: Mexico
In the box
One caliper with its bracket, caliper and pad hardware, slides, dust boots, bleeder screw with cap and crush washers. Brake pads, wear sensors, anti-squeal shims and bracket mounting bolts are not included, so plan on new bolts, since the old ones may not be reusable. This listing is one caliper; the other front wheel takes its own, ordered separately, and both sides are normally replaced together.
Interchange / FMSI:
FMSI: D1543
Frequently Asked Questions
Is this a 2011-2016 Hyundai Elantra brake caliper replacement, and does it also fit the 2013-2014 Hyundai Elantra Coupe?
Yes. Nugeon 99-00858A is listed for the 2011-2016 Hyundai Elantra and the 2013-2014 Hyundai Elantra Coupe, on the front left or front right.
What comes with the Nugeon brake caliper?
The caliper comes with its bracket, slides, dust boots, bleeder screw and cap, crush washers, and caliper and pad hardware. Pads, wear sensors, anti-squeal shims and bracket mounting bolts are not included.
What inlet fitting does the Nugeon caliper take?
Nugeon 99-00858A has a banjo bolt inlet with an M10-1.0 x 23.4 port thread. The bleeder screw is M10-1.0, and the caliper has a single 57 mm steel piston.
What can a sticking floating caliper like 99-00858A look like?
Pulling to one side when braking, a dragging noise or a wet dust boot can point to a caliper problem. A shop can test the hydraulics, and a fluid leak should be looked at promptly.
Is the Nugeon 99-00858A housing cast iron?
Yes. Nugeon 99-00858A has a cast iron housing with a rust-preventative finish and a steel piston. It is a remanufactured part, and the country of origin is Mexico.
