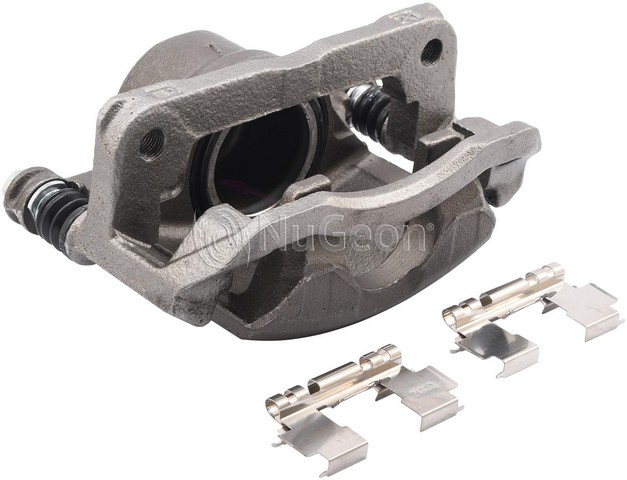

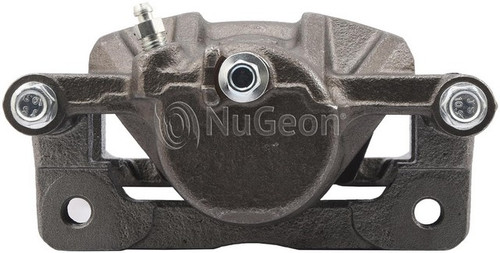

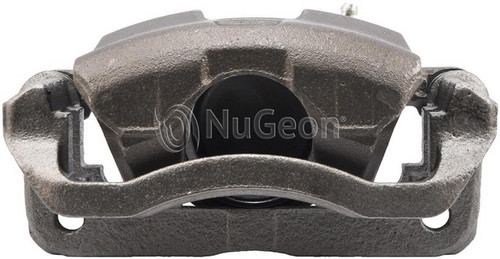

Built to press the brake pads against the rotor at the front left wheel, the Nugeon 99-00928A is a remanufactured 1994-1995 Honda Civic caliper that also serves the 1994-2001 Acura Integra. It is a direct-fit replacement for the listed applications: the 1994-1995 Honda Civic (All) and the 1994-2001 Acura Integra (All).
This floating, single-piston disc brake caliper has a cast iron housing with a rust preventative finish in a natural color. Its steel piston measures 57 mm (2.24 in) in outside diameter.
Signs a brake caliper may need replacing include brake fluid seeping at the caliper, a pull to one side when braking, a dragging or unusually hot wheel, and uneven pad wear. Diagnose the cause first. If a leaking or sticking caliper is the problem, this Nugeon brake caliper replaces it.
Specs: housing cast number 17CL14VN 7 L; bracket cast number At 23; caliper manufacturer Nissin. Sold individually, one per front left position. Country of origin: Mexico.
Which vehicles does this Nugeon caliper fit?
It is listed for the front left position on the 1994-1995 Honda Civic (All) and the 1994-2001 Acura Integra (All). Check the Buyer's Guide tab to confirm your vehicle.
Does this 1994-1995 Honda Civic brake caliper come with brake pads?
No. Pads, anti-squeal shims, and wear sensors are not included. The caliper uses FMSI pad number D617, so order a pad set separately.
What hardware is included?
It includes the mounting bracket, caliper slides, caliper and pad hardware, dust boots, crush washers, and a bleeder screw with cap. The caliper and bracket mounting bolts are not included.
What are the piston and thread specs?
It has one steel piston, 57 mm (2.24 in) in outside diameter. It has an M10-1.25 bleeder screw thread and a banjo-bolt inlet with an M10-1.0 thread.
Which position is this caliper for?
It is cataloged for the front left position and is sold individually as one caliper. The listed applications use one caliper at that position.
