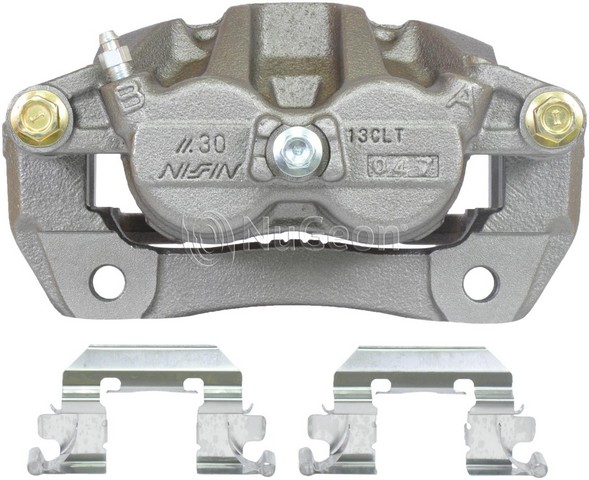

Nugeon 99-00949A front left brake caliper for the 2007-2016 Honda CR-V and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper, also called a disc brake caliper, mounts at the front left wheel.
- Floating design with two steel pistons, 46 mm in diameter
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet with an M10-1.0 x 23.4 port thread
- Bleeder screw with an M10-1.25 thread
Quick facts
- Part: Nugeon 99-00949A brake caliper
- Also called: disc brake caliper
- Fits: 2007-2016 Honda CR-V and other vehicles
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
A sticking caliper can show up as the car pulling to one side under braking, a wheel that drags or runs hot, or fluid seeping near the wheel. Those signs alone do not prove the caliper is at fault, since a damaged brake hose is another common source. This listing is one caliper for the front left; the front right is a separate part, and both sides are normally replaced together.
Fits
This front left caliper is a direct-fit replacement for the 2007-2016 Honda CR-V, the 2005-2010 Honda Odyssey and the 2012-2015 Honda Crosstour. Driving something else? Look up your own car in the "Vehicles it fits" section. The 2007-2016 Honda CR-V takes one at this position.
Specifications
Fit and size
- Position: front left
- Quantity per vehicle: 1
- Piston diameter: 46 mm (1.811 in)
- Piston quantity: 2
- Inlet port thread: M10-1.0 x 23.4
- Bleeder thread: M10-1.25
Build and materials
- Caliper type: floating
- Casting material: cast iron
- Piston material: steel
- Finish: rust preventative
- Housing cast numbers: 13CLT, B
- Condition: remanufactured
- Country of origin: Mexico
In the box
One remanufactured front left brake caliper with its bracket, slides, dust boots, caliper and pad hardware, bleeder screw and crush washer. Pads, anti-squeal shims, wear sensors, the bleeder screw cap and mounting bolts are not included, so plan on new bolts.
Interchange / FMSI:
FMSI: D1089
Frequently Asked Questions
Is this front left Honda CR-V caliper right for the 2007-2016 model years?
Yes. Nugeon 99-00949A is a front left caliper that fits the 2007-2016 Honda CR-V. The front right side takes its own separate caliper.
Is this front left Honda Odyssey brake caliper right for the 2005-2010 model years?
Yes. This front left caliper fits the 2005-2010 Honda Odyssey. The front right side needs its own caliper.
What comes with this Nugeon caliper?
It comes with the bracket, slides, dust boots, caliper and pad hardware, bleeder screw and crush washer. Pads, shims, wear sensors, the bleeder cap and mounting bolts are not included.
Does this brake caliper use a banjo bolt?
Yes. Nugeon 99-00949A has a banjo bolt inlet with an M10-1.0 x 23.4 port thread, and a crush washer is included.
How many pistons does this floating caliper have?
This floating caliper has two steel pistons with a 46 mm (1.811 in) diameter.
