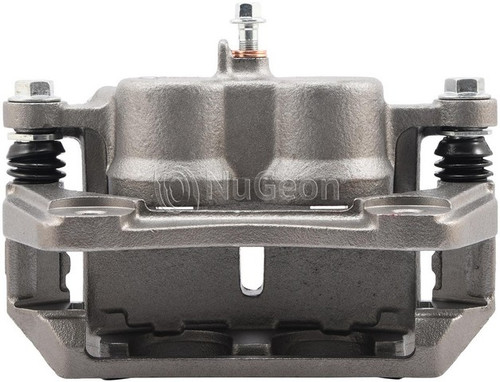

Nugeon 99-00966A front left brake caliper for the 2009-2015 Honda Pilot clamps the brake pads against the rotor to slow the wheel. This Nugeon brake caliper is remanufactured and replaces a worn or leaking disc brake caliper at that wheel.
A brake that drags, a pull to one side when braking, or brake fluid around the caliper can mean it has seized or is leaking. These signs alone do not prove the caliper is the problem, since a collapsed brake hose is another common cause.
This is a direct-fit caliper for the 2009-2015 Honda Pilot. The listing is one caliper for the front left wheel of that vehicle; the front right is a separate part, and both front calipers are normally replaced together.
Fit and size
Build and materials
One caliper with its mounting bracket, caliper slides, dust boots, bleeder screw with cap, crush washer, and caliper and pad hardware. Brake pads, anti-squeal shims, wear sensors, bracket mounting bolts and mounting bolts are not included, so plan on new bolts.
Interchange / FMSI:
FMSI: D1378
Is this a brake caliper replacement for the 2009-2015 Honda Pilot?
Yes. Nugeon 99-00966A is the front left caliper for the 2009-2015 Honda Pilot. The front right side is a separate part.
What comes with this Nugeon caliper?
Nugeon 99-00966A includes the bracket, caliper slides, dust boots, bleeder screw with cap, crush washer and pad hardware. Brake pads, wear sensors, anti-squeal shims and bracket mounting bolts are not included.
How big are the pistons in this floating brake caliper?
This caliper has two steel pistons, and the piston outside diameter is 48 mm (1.89 in).
How do I spot a sticking or leaking front left brake caliper?
Brake drag, a pull to one side or fluid around the caliper can point to a seized or leaking caliper. Have the brakes inspected promptly, and a shop can test the caliper itself.
What thread does the banjo bolt inlet on this caliper use?
The inlet fitting is a banjo bolt type with an M10 - 1.0 thread. The bleeder screw thread is M10-1.0.
