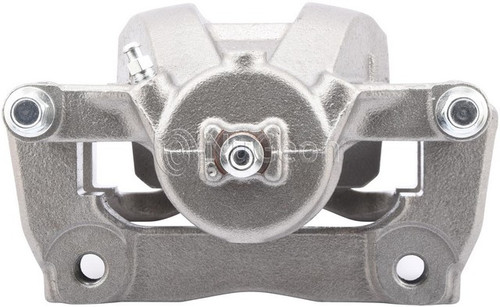

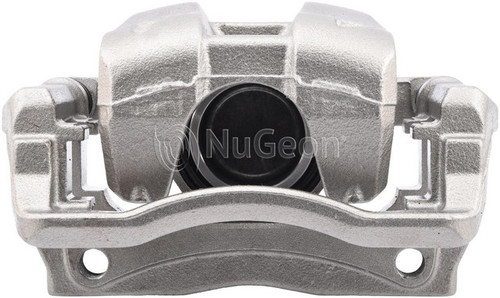

Nugeon 99-01047A front left brake caliper for the 2017-2024 Honda CR-V squeezes the brake pads against the rotor to slow the wheel. This is a remanufactured floating caliper with a single steel piston.
A caliper that sticks or leaks can show up as pulling to one side, uneven pad wear or brake fluid around the dust boot. These signs alone do not prove the caliper is at fault, since a restricted brake hose can cause a pull too.
This front left caliper for the 2017-2024 Honda CR-V is sold one per listing, and each side of the front axle takes one. The front right is a separate part, and the other side of that axle is normally done at the same time.
Fit and size
Build and materials
One caliper with its mounting bracket, caliper slides, caliper and pad hardware, dust boots, bleeder screw with cap and crush washers. Brake pads, anti-squeal shims, wear sensors and mounting bolts are not included; plan on new bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D2036
Is this Nugeon brake caliper the front left unit for the 2017-2024 Honda CR-V?
Yes. Nugeon 99-01047A is a front left caliper for the 2017-2024 Honda CR-V, and the front right side is a separate part.
Does this Nugeon caliper come with brake pads?
No. Nugeon 99-01047A comes with the bracket, slides, pad hardware, dust boots, bleeder screw and crush washers, but not pads, shims, wear sensors or mounting bolts.
Is this disc brake caliper floating or fixed, and how big is the piston?
This front left caliper is a floating type with a single steel piston that measures 61 mm (2.402 in) across.
What signs can mean a front left caliper is sticking or leaking?
Pulling to one side when braking, a burning smell after driving or fluid at the caliper can be signs of a sticking or leaking caliper. A shop can confirm the cause.
What casting numbers does this remanufactured caliper carry?
Nugeon 99-01047A has housing cast number 006 A B NISSIN 18CLII and bracket cast number 17VNII-25T. Nissin is the caliper manufacturer.
