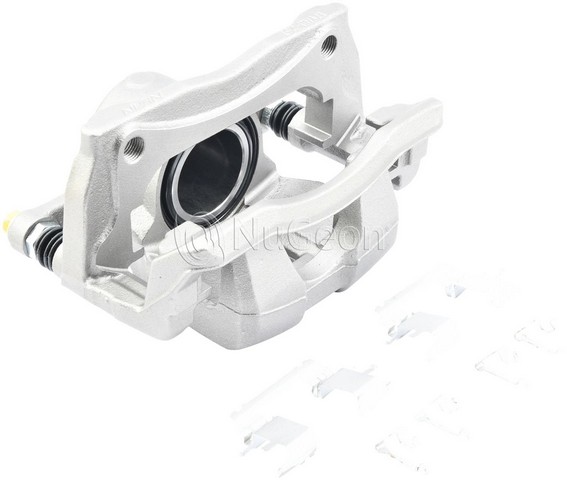

Nugeon 99-01047B front right brake caliper for the 2017-2024 Honda CR-V is a remanufactured unit that presses the pads against the rotor. This Nugeon brake caliper turns brake fluid pressure into clamping force at the front right wheel.
- Floating caliper design with a single piston
- Steel piston, 61 mm (2.402 in) outside diameter
- Cast iron housing with a rust preventative finish
- Banjo bolt inlet with an M10 - 1.0 thread
Quick facts
- Part: Nugeon 99-01047B brake caliper
- Also called: disc brake caliper
- Fits: 2017-2024 Honda CR-V
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
A sticking or leaking caliper can show up as pulling to one side under braking, a dragging brake or brake fluid near the wheel. A worn rotor, a collapsed brake hose or worn pads can be behind these signs too, so find the cause before buying. Calipers are normally replaced as an axle pair, so plan on the front left as well.
Fits
It fits the 2017-2024 Honda CR-V, including the L4-1.5L engine in 2020-2024. This listing is one caliper for the front right wheel, and the front left is ordered separately.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Piston outside diameter: 61 mm (2.402 in)
- Piston quantity: 1
- Inlet fitting: Banjo bolt, M10 - 1.0 thread
- Bleeder screw thread: M10-1.25
Build and materials
- Condition: Remanufactured
- Caliper type: Floating
- Casting material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Housing cast numbers: 006 A B NISSIN 18CLII
- Bracket cast numbers: 17VNII-25T
- Country of origin: Mexico
In the box
One brake caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw with cap and crush washers. Brake pads, anti-squeal shims, wear sensors and bracket mounting bolts are not included, so plan on new mounting bolts because the old ones may not be reusable.
Interchange / FMSI:
FMSI: D2036
Frequently Asked Questions
Is this the front right 2017-2024 Honda CR-V caliper?
Yes. Nugeon 99-01047B is the front right caliper for the 2017-2024 Honda CR-V, including the L4-1.5L engine in 2020-2024. The front left side is a separate part.
Does the Nugeon caliper come with brake pads and bracket bolts?
No. This caliper includes the bracket, slides, dust boots, caliper and pad hardware, bleeder screw with cap and crush washers. Pads, shims, wear sensors and bracket mounting bolts are not included.
Is this disc brake caliper floating or fixed?
This front right caliper is a floating type with one steel piston and a cast iron housing. It is a remanufactured unit.
What thread sizes does Nugeon 99-01047B use for the inlet and bleeder?
The inlet is a banjo bolt fitting with an M10 - 1.0 thread, and the bleeder screw is M10-1.25.
What FMSI pad number goes with this front right caliper?
The catalog lists FMSI pad number D2036 for this caliper. Brake pads are not part of this listing.
