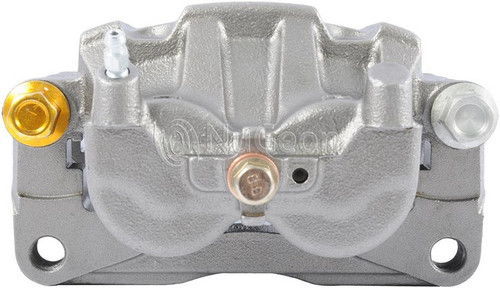

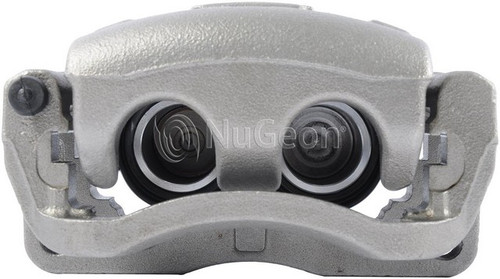

Nugeon 99-01180A front left brake caliper for the 2007-2012 Mazda CX-7 squeezes the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is a floating design with two steel pistons.
- Floating caliper with two steel pistons, 45 mm (1.772 in) piston diameter
- Cast iron caliper with a rust-preventative finish
- Mounting bracket, caliper slides and dust boots included
- Bleeder screw and crush washers included
- Banjo bolt inlet fitting with an M10-1.0 thread
Quick facts
- Part: Nugeon 99-01180A brake caliper
- Also called: disc brake caliper
- Fits: 2007-2012 Mazda CX-7
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
Pulling to one side under braking, fluid at the piston boot or one pad wearing faster than its partner can mean a caliper problem. A worn hose or a rusty slide can pull the car too, so during pad service look over the boot for fluid and the slides for rust before replacing the caliper.
Fits
This is a direct-fit replacement brake caliper for the 2007-2012 Mazda CX-7, and it goes on the front left.
Specifications
Fit and size
- Position: front left
- Quantity per vehicle: 1 (front left)
- Piston diameter: 45 mm (1.772 in)
- Piston quantity: 2
- Inlet fitting: banjo bolt, M10-1.0 x 27.32 mm
- Bleeder screw thread: M8-1.0
Build and materials
- Condition: remanufactured
- Caliper type: floating
- Caliper casting material: cast iron
- Piston material: steel
- Finish: rust preventative
- Housing cast numbers: F13WN, K0089
- Country of origin: Mexico
In the box
One front left caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. The 2007-2012 Mazda CX-7 takes one on this side; the front right is a separate part, and the two sides are normally replaced together. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, caliper and pad hardware and the bracket mounting bolts are not included, so plan on new bracket bolts.
Frequently Asked Questions
Is this the front brake caliper for the left side of the 2007-2012 Mazda CX-7?
Yes. Nugeon 99-01180A is the front left caliper for the 2007-2012 Mazda CX-7; the front right side is a separate part.
Does this Nugeon caliper come with the bracket and bleeder screw?
Yes. Nugeon 99-01180A includes the mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Pads, shims, wear sensors and bracket bolts are not included.
Is this disc brake caliper a floating type, and how big are the pistons?
Yes, this caliper is a floating type with two steel pistons and a 45 mm (1.772 in) piston diameter.
What signs can show a front brake caliper is sticking or leaking?
Pulling to one side when braking, fluid around the piston boot or one pad wearing much faster than its partner can point to a caliper problem. Have the brakes checked promptly rather than driving on them.
What thread does the banjo inlet on this caliper use?
The inlet is a banjo bolt fitting with an M10-1.0 thread (M10-1.0 x 27.32 mm). The bleeder screw thread is M8-1.0.
