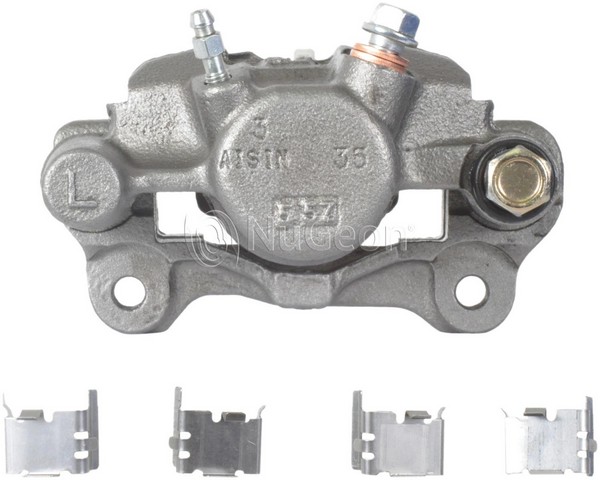

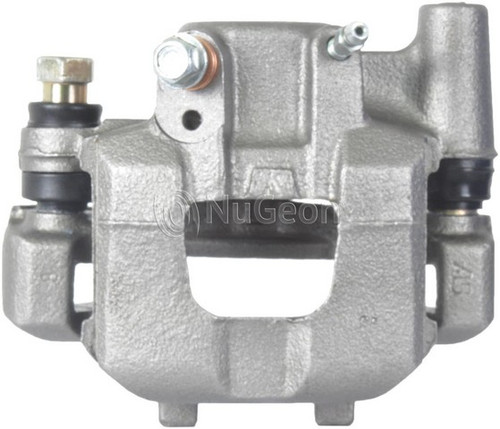

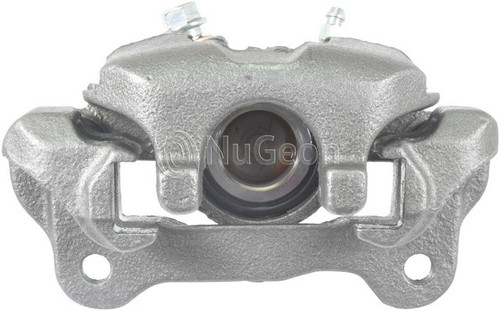

Nugeon 99-01613A rear left brake caliper for the 2005-2010 Scion tC turns hydraulic brake pressure into clamping force at that wheel. This remanufactured Nugeon brake caliper, also called a disc brake caliper, is a floating design.
Pulling to one side under braking, a burning smell after driving or fluid around the wheel can mean a sticking or leaking caliper. Worn brake parts or tires can show similar symptoms, so find the cause before replacing it. With the engine off and the wheels cool, look for fluid stains around that wheel; a shop can inspect the caliper itself.
It fits the rear left wheel of the 2005-2010 Scion tC.
Fit and size
Build and materials
One remanufactured rear left brake caliper with its mounting bracket, caliper and pad hardware, slides, dust boots, bleeder screw and crush washers. Brake pads, wear sensors, anti-squeal shims, the bleeder screw cap and bracket mounting bolts are not included, so plan on new bolts, since the old ones may not be reusable. The 2005-2010 Scion tC takes one caliper on this side; the rear right is a separate part ordered on its own, and the two sides are normally replaced together.
Does this Scion tC brake caliper fit the rear left of a 2005-2010 Scion tC?
Yes. Nugeon 99-01613A is the rear left caliper for the 2005-2010 Scion tC. The rear right side is a separate part.
Does this Nugeon caliper come with the bracket and slides?
Yes. This Nugeon 99-01613A includes the bracket, slides, dust boots, caliper and pad hardware, and bleeder screw. Pads, wear sensors, shims and bracket mounting bolts are not included.
What size is the inlet fitting on this rear left caliper?
It has a banjo inlet fitting with an M10-1.0 x 27.32 inlet port thread. The bleeder screw thread is M7-1.0.
What are the signs of a sticking rear brake caliper?
The car can pull to one side under braking, give off a burning smell after driving, or leak brake fluid near the caliper. Because brakes are involved, have it inspected promptly.
Is this caliper a floating or fixed design, and what is the piston made of?
Nugeon 99-01613A is a floating caliper with one steel piston. The housing is cast iron with a rust-preventative finish.
