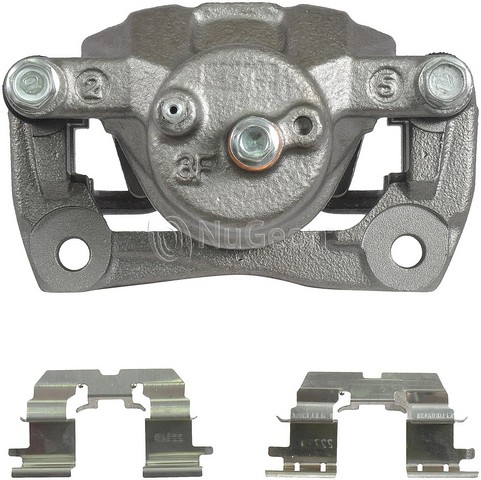

Nugeon 99-01643A front brake caliper for the 2002-2005 Toyota Echo and other vehicles clamps the pads against the rotor to slow the wheel. This remanufactured disc brake caliper mounts on either front side.
- Floating caliper design with one piston
- Steel piston, 51 mm (2.008 in) in diameter
- Cast iron caliper casting
- Rust-preventative finish
- Banjo-bolt inlet with an M10-1.0 thread
Quick facts
- Part: Nugeon 99-01643A brake caliper
- Also called: disc brake caliper
- Fits: 2002-2005 Toyota Echo and other vehicles
- Position: Front right, front left
- Material: Cast iron caliper casting, steel piston
- Condition: Remanufactured
A sticking or leaking caliper can show up as the car pulling to one side, uneven pad wear or fluid around the piston boot. Worn pads or a damaged rotor can also be behind pulling or uneven wear, so find out which part is at fault before buying a caliper. This listing is one caliper; the car takes one on each side of the front axle, and both sides are normally replaced together.
Fits
This is a direct-fit brake caliper for the 2002-2005 Toyota Echo and the 2000-2005 Toyota MR2 Spyder.
Specifications
Fit and size
- Position: front right, front left
- Quantity per application: 1
- Piston diameter: 51 mm (2.008 in)
- Number of pistons: 1
- Inlet port thread: M10-1.0 x 23.4 mm
- Bleeder screw thread: M7-1.0
- Housing cast number: 3F
Build and materials
- Condition: remanufactured
- Caliper type: floating
- Inlet fitting: banjo bolt
- Caliper casting material: cast iron
- Piston material: steel
- Finish: rust preventative
- Country of origin: Mexico
In the box
One brake caliper with its bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, caliper and pad hardware and the bracket mounting bolts are not included, so plan on new bolts.
Frequently Asked Questions
Is this Nugeon brake caliper right for the 2002-2005 Toyota Echo?
Yes. The Nugeon 99-01643A front brake caliper is a direct-fit replacement for the 2002-2005 Toyota Echo and for the 2000-2005 Toyota MR2 Spyder.
Does the Nugeon caliper come with brake pads?
No. The Nugeon 99-01643A comes with the bracket, slides, dust boots, bleeder screw and crush washers. Pads, shims, wear sensors and bracket mounting bolts are not included.
How big is the piston in this floating caliper?
The caliper has one steel piston, 51 mm (2.008 in) across. Its inlet is a banjo-bolt fitting with an M10-1.0 thread.
What can a sticking piston in this floating caliper look like?
Pulling to one side, uneven pad wear or fluid at the dust boot can mean a caliper problem. Brakes are a safety system, so have the car inspected promptly rather than driving on.
Does this caliper work on both the front left and front right?
Yes. The Nugeon 99-01643A is listed for both front positions, and the car takes one caliper on each side of the front axle.
