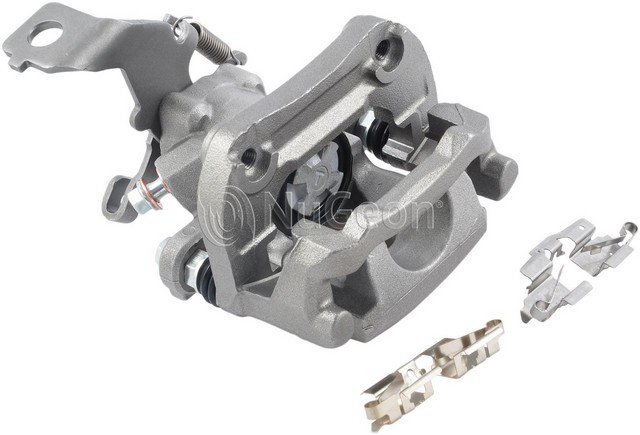

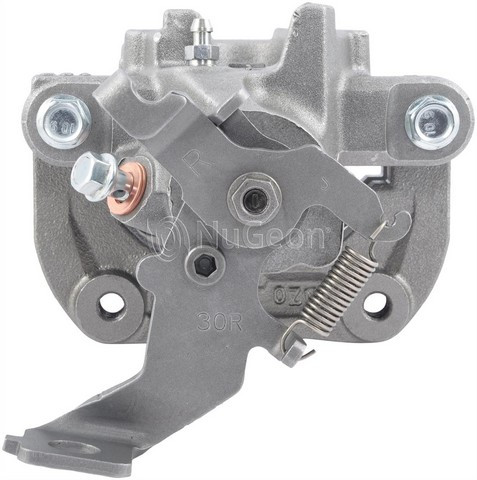

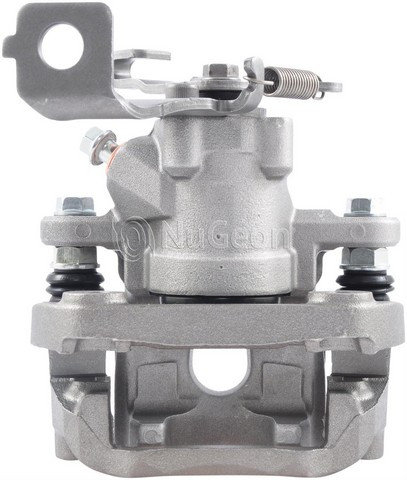

Nugeon 99-01739A rear right brake caliper for the 2011-2016 Scion tC clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper uses brake fluid pressure to push its piston against the pad.
- Floating caliper design with an aluminum casting
- Steel piston, 38 mm (1.496 in) in diameter
- Rust-preventative caliper finish
- Banjo bolt inlet fitting with an M10-1.0 x 27.32 port thread
Quick facts
- Part: Nugeon 99-01739A brake caliper
- Also called: disc brake caliper
- Fits: 2011-2016 Scion tC
- Position: Rear right
- Material: Aluminum (caliper casting), steel (piston)
- Condition: Remanufactured
A disc brake caliper that sticks or leaks can show up as the car pulling to one side, uneven pad wear or brake fluid around the wheel. These signs alone do not prove the caliper is the problem; a collapsed brake hose is another common source of pulling.
Fits
This is a direct-fit brake caliper for the rear right side of the 2011-2016 Scion tC. The 2011-2016 Scion tC takes one at the rear right; the rear left caliper is a separate part ordered on its own, and the two are normally replaced together.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1
- Piston diameter: 38 mm (1.496 in)
- Inlet fitting: banjo bolt, M10-1.0 x 27.32 port thread
- Bleeder screw thread: M10-1.0
- Housing cast numbers: 1C/1CR
Build and materials
- Caliper type: Floating
- Condition: Remanufactured
- Caliper casting material: Aluminum
- Piston material: Steel
- Finish: Rust preventative
- Country of origin: Mexico
In the box
One remanufactured brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, caliper and pad hardware and the bracket mounting bolts are not included, so plan on new bolts because the old ones may not be reusable.
Frequently Asked Questions
Is this the rear caliper for the 2011-2016 Scion tC?
Yes. Nugeon 99-01739A is the rear right caliper for the 2011-2016 Scion tC. The rear left side takes its own separate caliper.
Does the Nugeon caliper come with brake pads?
No. This remanufactured Nugeon 99-01739A caliper includes the bracket, slides, dust boots, bleeder screw and crush washers. Pads, shims and wear sensors are not included.
What thread size does this brake caliper use for the banjo bolt and bleeder?
The inlet port thread is M10-1.0 x 27.32 for the banjo bolt, and the bleeder screw thread is M10-1.0.
How can I tell if this rear right caliper is leaking or sticking?
Look for brake fluid around the wheel or dust boot, or uneven pad wear during a brake service. A pull to one side while driving can also be a sign, and a shop can test it.
Which casting numbers are on the housing of this remanufactured caliper?
The housing carries cast numbers 1C/1CR. The Nugeon 99-01739A body also has a rust-preventative finish.
