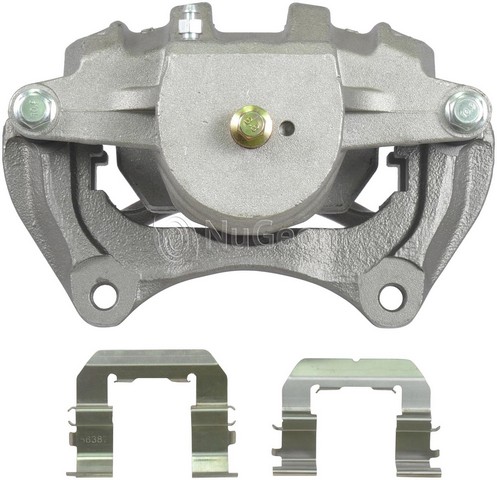

Front Right Brake Caliper for 2011-2015 Kia Optima - Nugeon 99-01843A
Nugeon 99-01843A front right brake caliper for the 2011-2015 Kia Optima clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper replaces a worn, sticking or leaking one.
- Floating caliper with one steel piston, 60 mm (2.36 in) in diameter
- Aluminum caliper casting with a rust-preventative finish
- Banjo-bolt inlet with an M10-1.0 x 23.4 mm port thread and a crush washer
- Bleeder screw with cap, M10-1.0 thread
Quick facts
- Part: Nugeon 99-01843A brake caliper
- Also called: disc brake caliper
- Fits: 2011-2015 Kia Optima
- Position: Front right
- Material: Aluminum caliper casting, steel piston
- Condition: Remanufactured
Pulling to one side, one pad wearing faster than the other, or brake fluid dampness around the piston boot can be signs of a failing caliper. These signs alone do not prove the caliper is at fault, since a collapsed brake hose can cause some of them too. This listing is one caliper; both front calipers are normally replaced together.
Fits
This front right caliper is a direct-fit replacement for the 2011-2015 Kia Optima.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1 for this side
- Piston diameter: 60 mm (2.36 in)
- Piston quantity: 1
- Inlet fitting: banjo bolt, port thread M10-1.0 x 23.4 mm
- Bleeder screw thread: M10-1.0
- Housing cast number: BC140135
- Bracket cast number: BC412185
Build and materials
- Caliper type: Floating
- Casting material: Aluminum
- Piston material: Steel
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One caliper with its bracket, slides, dust boots, and caliper and pad hardware. Brake pads, wear sensors, anti-squeal shims and mounting bolts are not included, and the old bolts may not be reusable, so plan on new ones. The 2011-2015 Kia Optima takes one caliper on the front right, so this listing covers that side; the front left is a separate part.
Interchange / FMSI:
FMSI: D1413
Frequently Asked Questions
Is this the 2011-2015 Kia Optima brake caliper for the front right wheel?
Yes. Nugeon 99-01843A is a front right caliper for the 2011-2015 Kia Optima. The front left side is a separate part.
Does this disc brake caliper come with brake pads or a bracket?
It comes with the bracket, slides, dust boots, bleeder screw and cap, and caliper and pad hardware. Pads, wear sensors, anti-squeal shims and mounting bolts are not included.
What size is the piston on the Nugeon caliper?
The Nugeon 99-01843A has one steel piston measuring 60 mm (2.36 in) across, in a floating-type aluminum casting.
Which threads do the inlet and bleeder screw use on this caliper?
The banjo inlet port is M10-1.0 x 23.4 mm and the bleeder screw is M10-1.0. A crush washer for the banjo bolt is included.
How would I notice a sticking front brake caliper?
A sticking caliper can show as a burning smell after a drive or as the car slowing as if the brakes were dragging. A shop can confirm which part is causing it.
