Nugeon Disc Brake Caliper P/N:99-00824B

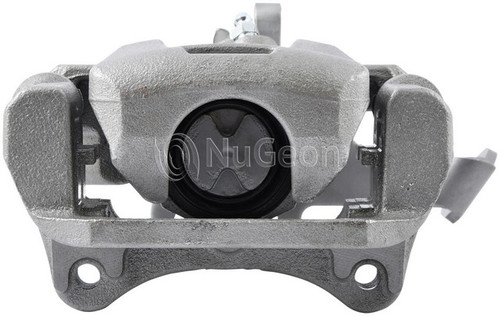

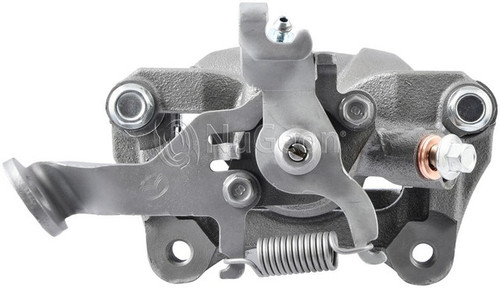

Nugeon 99-02001A rear right brake caliper for the 2014-2015 Mazda 6 clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is a floating design with a single steel piston.
A disc brake caliper that is failing can show up as the car pulling to one side under braking, a wheel that drags, brake fluid around the caliper or pads that wear unevenly. Before you replace the caliper, rule out worn pads, a damaged brake hose and sticking slides, because each of those can produce a similar pull or drag.
This is a caliper for the 2014-2015 Mazda 6, and it goes on the rear right. Rear calipers are normally replaced as a pair, but this listing is one caliper; the rear left is ordered separately. The rear axle has one caliper on each side.
Fit and size
Build and materials

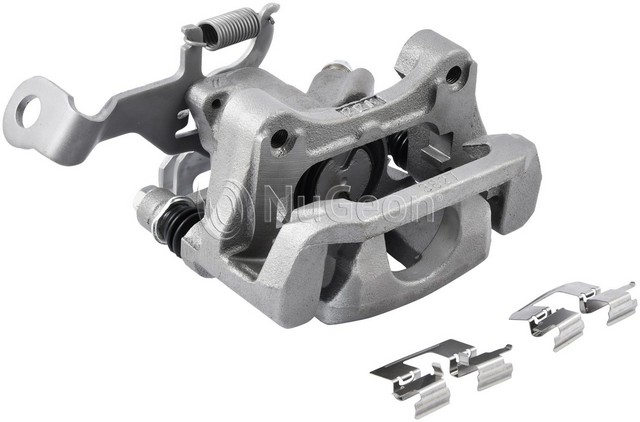

One brake caliper with its bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw and crush washers. Brake pads, wear sensors, anti-squeal shims, the bleeder screw cap and the bracket mounting bolts are not included; plan on new mounting bolts rather than reusing the old ones.
Product information is for general reference and may contain errors. See our Disclaimer.
Is this the right rear caliper for the 2014-2015 Mazda 6?
Yes, Nugeon 99-02001A is the rear right brake caliper for the 2014-2015 Mazda 6; the rear left takes a separate caliper.
Does this Nugeon caliper come with its bracket and slides?
Yes, it includes the bracket, caliper slides, dust boots, pad hardware, bleeder screw and crush washers; brake pads, wear sensors and bracket mounting bolts are not included.
What size are the piston and inlet thread on the Nugeon 99-02001A?
Nugeon 99-02001A has a single steel piston 38 mm (1.496 in) across. The banjo inlet port thread is M10-1.0 x 23.4 mm.
Is the Nugeon 99-02001A a floating or fixed caliper?
It is a floating caliper. Nugeon 99-02001A has one steel piston and a cast iron housing with a rust-preventative finish.
Can I keep driving with a sticking rear brake caliper?
No, a sticking or leaking caliper should be checked or replaced promptly, so have a shop inspect the rear brakes before you drive further.
