Remanufactured Front Right Brake Caliper for 2014-2021 Mazda 6 - Nugeon 99-02002B

$193.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 99-02002B
    UPC: 736749374293
    Condition: Refurbished
    Weight: 12.30 LBS
    Sold as: 1 (front right)
    Part Has Core (Y/N): N
    $193.99
    Adding to cart… The item has been added

    Have questions?

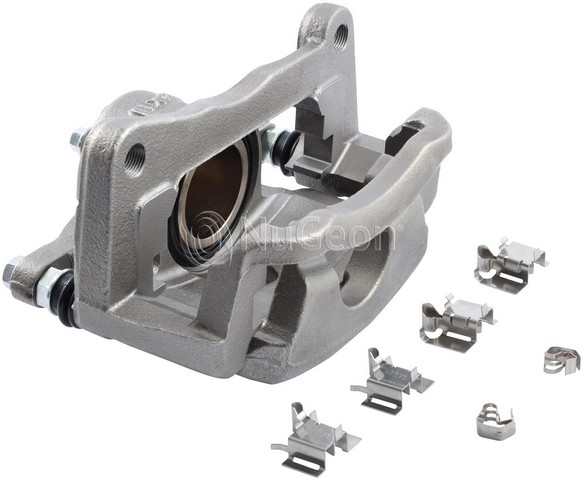

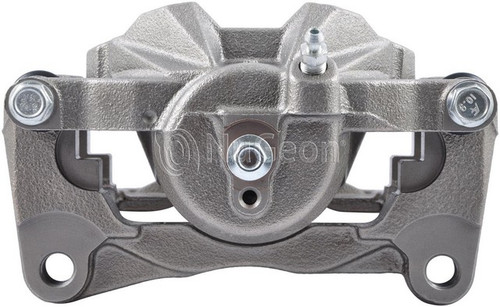

    Nugeon Disc Brake Caliper P/N:99-02002B
    Nugeon Disc Brake Caliper P/N:99-02002B
    $193.99
    $193.99

    Nugeon 99-02002B front right brake caliper for the 2014-2021 Mazda 6 is remanufactured and squeezes the pads against the rotor.

    • Floating caliper with one 57 mm (2.24 in) steel piston
    • Cast iron casting with a rust-preventative finish
    • Banjo bolt inlet fitting with an M10-1.0 thread
    • Bleeder screw with an M10-1.0 thread

    Quick facts

    • Part: Nugeon 99-02002B brake caliper
    • Also called: disc brake caliper
    • Fits: 2014-2021 Mazda 6
    • Position: Front right
    • Material: Cast iron casting, steel piston
    • Condition: Remanufactured

    Brake fluid around the piston boot, a pad worn faster than its partner, or a wheel that feels like it drags can point to a caliper that is sticking or leaking. Pulling and uneven pad wear have other possible sources too, so during a brake service look over the slides, brake hose and rotor before settling on the caliper.

    Fits

    It fits the 2014-2021 Mazda 6, which takes one caliper on the front right; the front left is a separate part ordered on its own, and the two sides are normally replaced together.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity: 1 (front right)
    • Piston diameter: 57 mm (2.24 in)
    • Pistons: 1
    • Inlet fitting: Banjo bolt, M10-1.0 thread
    • Bleeder screw thread: M10-1.0

    Build and materials

    • Caliper type: Floating
    • Condition: Remanufactured
    • Casting material: Cast iron
    • Piston material: Steel
    • Finish: Rust preventative
    • Country of origin: Mexico

    In the box

    One remanufactured brake caliper with its bracket, slides, dust boots, caliper and pad hardware, bleeder screw and cap, and crush washers. Brake pads, wear sensors, anti-squeal shims and mounting bolts are not included, so plan on new bolts rather than reusing the old ones.

    Interchange / FMSI:

    FMSI: D1711

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this 2014-2021 Mazda 6 caliper the front right one?

    Yes. Nugeon 99-02002B is the front right brake caliper for the 2014-2021 Mazda 6; the front left side is a separate part.

    Does the Nugeon caliper come with brake pads?

    No. Pads, wear sensors and anti-squeal shims are not included. The caliper comes with its bracket, slides, dust boots and pad hardware.

    Is this disc brake caliper a floating or fixed design?

    It is a floating design. This brake caliper has one 57 mm (2.24 in) steel piston and a cast iron casting with a rust-preventative finish.

    Can a sticking front right caliper make the car pull to one side?

    Yes, it can. A fluid leak at the piston boot or one pad wearing faster than the other can also be signs, and a shop can test the brakes to confirm.

    What thread sizes do the bleeder screw and banjo inlet use on this caliper?

    Both the bleeder screw and the banjo bolt inlet are M10-1.0. The bleeder screw and its cap come with the Nugeon 99-02002B.
