Remanufactured Front Right Brake Caliper for 2004-2010 BMW X3 - Nugeon 99-02409A

$158.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 99-02409A
    UPC: 736749378062
    Condition: Refurbished
    Weight: 12.80 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $158.99
    Adding to cart… The item has been added

    Have questions?

    Nugeon Disc Brake Caliper P/N:99-02409A
    Nugeon Disc Brake Caliper P/N:99-02409A
    $158.99
    $158.99

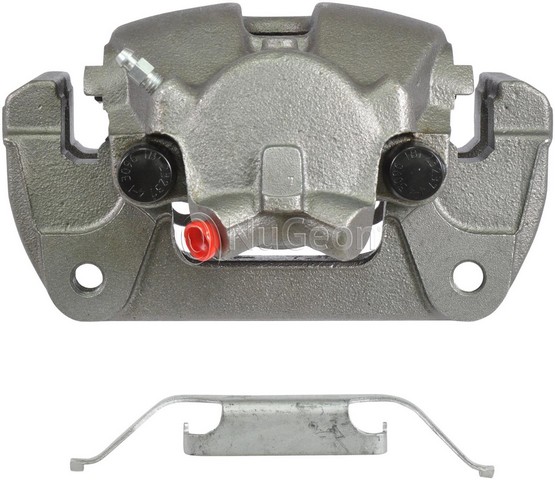

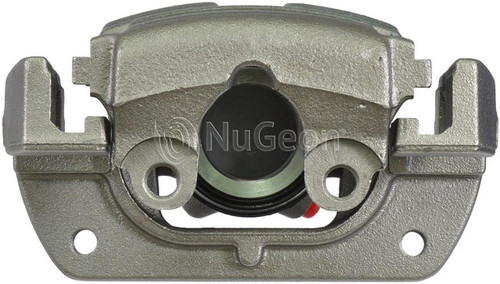

    Nugeon 99-02409A front right brake caliper for the 2004-2010 BMW X3 is a remanufactured unit that slows the front right wheel. Brake fluid pressure pushes the piston of this Nugeon brake caliper, which presses the pads against the rotor.

    • Floating caliper design with one steel piston, 57 mm across
    • Cast iron housing with a rust-preventative finish
    • M8-1.25 bleeder screw thread and M10-1.0 inlet port thread

    Quick facts

    • Part: Nugeon 99-02409A brake caliper
    • Also called: disc brake caliper
    • Fits: 2004-2010 BMW X3
    • Position: Front right
    • Material: Cast iron
    • Condition: Remanufactured

    A sticking or leaking caliper can show up as the car pulling to one side under braking, a hot smell from one wheel, uneven pad wear or fluid around the dust boot. A collapsed brake hose or unevenly worn pads can be behind the same signs, so find the cause before you replace the caliper.

    Fits

    It is a direct-fit 2004-2010 BMW X3 caliper for the front right wheel. The front axle has one caliper on each side; this listing is the front right, the front left is a separate part, and the two are normally replaced together.

    Specifications

    Fit and size

    • Position: front right
    • Quantity per vehicle: 1 for this side
    • Piston diameter: 57 mm (2.244 in)
    • Piston quantity: 1
    • Inlet port thread: M10-1.0
    • Bleeder screw thread: M8-1.25
    • Housing cast numbers: 57/25, 844
    • Bracket cast number: 720

    Build and materials

    • Caliper type: floating
    • Housing material: cast iron
    • Piston material: steel
    • Finish: rust preventative
    • Condition: remanufactured
    • Country of origin: Mexico

    In the box

    One remanufactured brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Pads, anti-squeal shims, wear sensors, the bleeder screw cap, caliper and pad hardware and the bracket mounting bolts are not included, so plan on new bolts.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the 2004-2010 BMW X3 front brake caliper for the right side?

    Yes. Nugeon 99-02409A is the front right brake caliper for the 2004-2010 BMW X3. The front left side is a separate part and is ordered on its own.

    Does this disc brake caliper include the bracket and pads?

    It includes the mounting bracket, slides, dust boots, bleeder screw and crush washers. Pads, shims, wear sensors and the bracket mounting bolts are not included.

    What size piston does the Nugeon caliper have?

    Nugeon 99-02409A is a floating caliper with one steel piston that is 57 mm (2.244 in) across. Its bleeder screw thread is M8-1.25 and its inlet port thread is M10-1.0.

    How can I tell if this front right brake caliper is sticking?

    The car may pull to one side when braking, the front right wheel may smell hot, or the pads may wear unevenly. A brake fluid leak near the boot needs prompt attention from a shop.

    Which cast numbers should I match on my old caliper?

    The housing cast numbers are 57/25 and 844, and the bracket cast number is 720. Compare them with the numbers cast into your old caliper.
