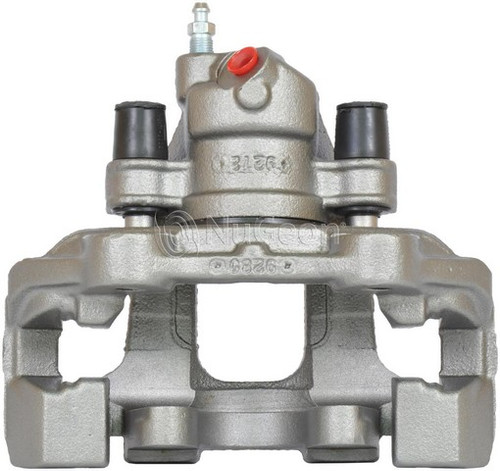

Nugeon 99-02801A rear left brake caliper for the 2006-2013 Mercedes-Benz R350 and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is a floating design made for the rear left position.
- Single steel piston, 40 mm (1.575 in) in diameter
- Cast iron housing with a rust-preventative finish
- M10-1.0 thread on both the bleeder screw and the inlet port
Quick facts
- Part: Nugeon 99-02801A brake caliper
- Also called: disc brake caliper
- Fits: 2006-2013 Mercedes-Benz R350 and other vehicles
- Position: Rear left
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
A sticking or leaking disc brake caliper can show up as the car pulling to one side, uneven pad wear or brake fluid around the wheel. Before you replace it, rule out worn pads, a damaged brake hose and sticking slide pins, since each of those can also make a car pull or wear pads unevenly.
Fits
Vehicles it fits include the 2006-2013 Mercedes-Benz R350, the 2006-2011 Mercedes-Benz ML350 and the 2010-2011 Mercedes-Benz ML450. Pairing the rear calipers is the usual advice, so plan on a second one for the rear right; this listing is a single caliper, and the 2006-2013 Mercedes-Benz R350 takes one at the rear left.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1
- Piston quantity: 1
- Piston diameter: 40 mm (1.575 in)
- Bleeder screw thread: M10-1.0
- Inlet port thread: M10-1.0
Build and materials
- Caliper type: Floating
- Condition: Remanufactured
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, the bracket mounting bolts and the caliper and pad hardware are not included, so plan on new mounting bolts rather than reusing the old ones.
Frequently Asked Questions
Is this the right 2006-2011 Mercedes-Benz ML350 brake caliper for the rear left side?
Yes. Nugeon 99-02801A is a rear left caliper for the 2006-2011 Mercedes-Benz ML350. If your Mercedes-Benz is another model, look up your year and model in the "Vehicles it fits" section.
Does this Nugeon caliper come with brake pads?
No. Nugeon 99-02801A is one remanufactured caliper with its bracket, slides, dust boots, bleeder screw and crush washers. Pads, shims, wear sensors and bracket mounting bolts are not included.
What size is the piston on this rear left caliper?
The single piston is steel and 40 mm (1.575 in) in diameter. The bleeder screw and the inlet port both use an M10-1.0 thread.
What can a sticking rear caliper look like?
Signs can include the car pulling to one side, uneven pad wear between the left and right rear, or brake fluid weeping around the caliper. A shop can test the brakes to find the cause.
Is the housing on this remanufactured caliper made of cast iron?
Yes. The housing is cast iron with a rust-preventative finish, and the piston is steel. This is a floating caliper for the rear left position.
