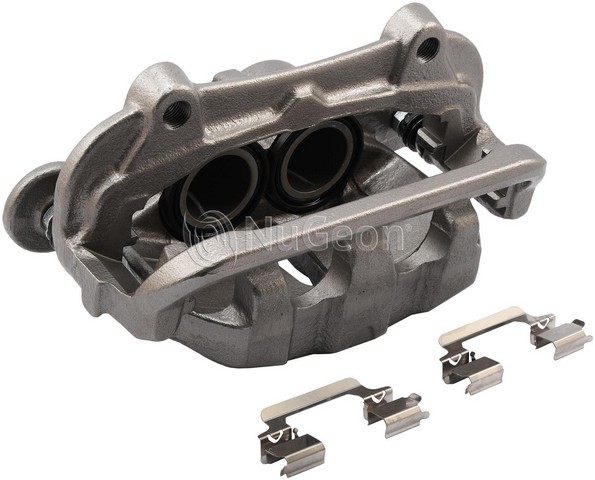

Nugeon 99-05424B front left brake caliper for the 2010-2017 Land Rover Range Rover and other vehicles clamps the pads against the rotor to slow the wheel. This is a remanufactured unit; brake fluid pressure pushes its pistons to apply the pads.
- Floating caliper design with two steel pistons
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet fitting and an M10-1.0 bleeder screw
Quick facts
- Part: Nugeon 99-05424B brake caliper
- Also called: disc brake caliper
- Fits: 2010-2017 Land Rover Range Rover and other vehicles
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
A sticking caliper can show up as the car pulling to one side under braking, brake drag, or a pad worn more on one side. Fluid at the dust boot is another sign. Those signs can also come from other brake parts, so during a brake service look for fluid around the boot and banjo fitting and compare pad wear before you replace the caliper.
Fits
The Nugeon caliper is a direct-fit replacement for the 2010-2017 Land Rover Range Rover, the 2010-2017 Land Rover Range Rover Sport and the 2010-2016 Land Rover LR4. This listing is one caliper for the front left, and the front right is a separate part; both are normally replaced together.
Specifications
Fit and size
- Position: front left
- Quantity per vehicle: 1 for this side
- Piston quantity: 2
- Piston outside diameter: 48 mm (1.89 in)
- Inlet port thread: M10-1.0 x 23.4
- Housing cast number: 3729/C
Build and materials
- Caliper type: floating
- Condition: remanufactured
- Housing material: cast iron
- Piston material: steel
- Finish: rust preventative
- Country of origin: Mexico
In the box
One front left caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, caliper and pad hardware, the bracket mounting bolts and the mounting bolt are not included, so plan on new bolts rather than reusing the old ones. The front left takes one caliper; the front right is ordered separately.
Frequently Asked Questions
Is this front left caliper one of the Range Rover calipers for the 2010-2017 Land Rover Range Rover?
Yes. Nugeon 99-05424B is the front left caliper for the 2010-2017 Land Rover Range Rover; the front right side is a separate part.
Does the Nugeon brake caliper come with brake pads?
No. Nugeon 99-05424B comes with its bracket, caliper slides, dust boots, bleeder screw and crush washers, but brake pads, shims and wear sensors are not included.
What size are the pistons on this disc brake caliper?
This caliper has two steel pistons, each 48 mm (1.89 in) in diameter.
Will this caliper fit the 2010-2017 Land Rover Range Rover Sport?
Yes. This front left caliper fits the 2010-2017 Land Rover Range Rover Sport; the front right side takes its own caliper.
What are the inlet and bleeder thread sizes on this front left caliper?
The banjo bolt inlet port is M10-1.0 x 23.4, and the bleeder screw thread is M10-1.0.
